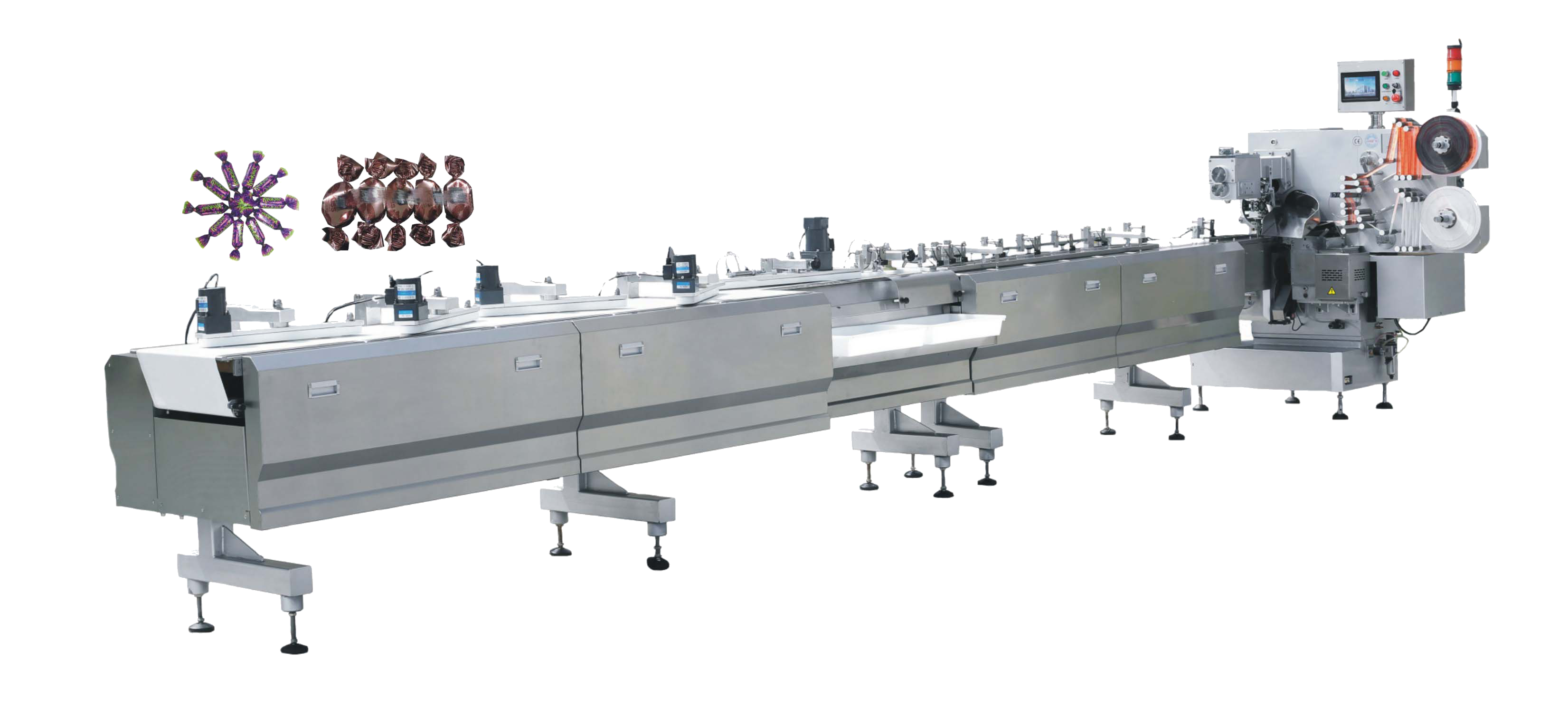

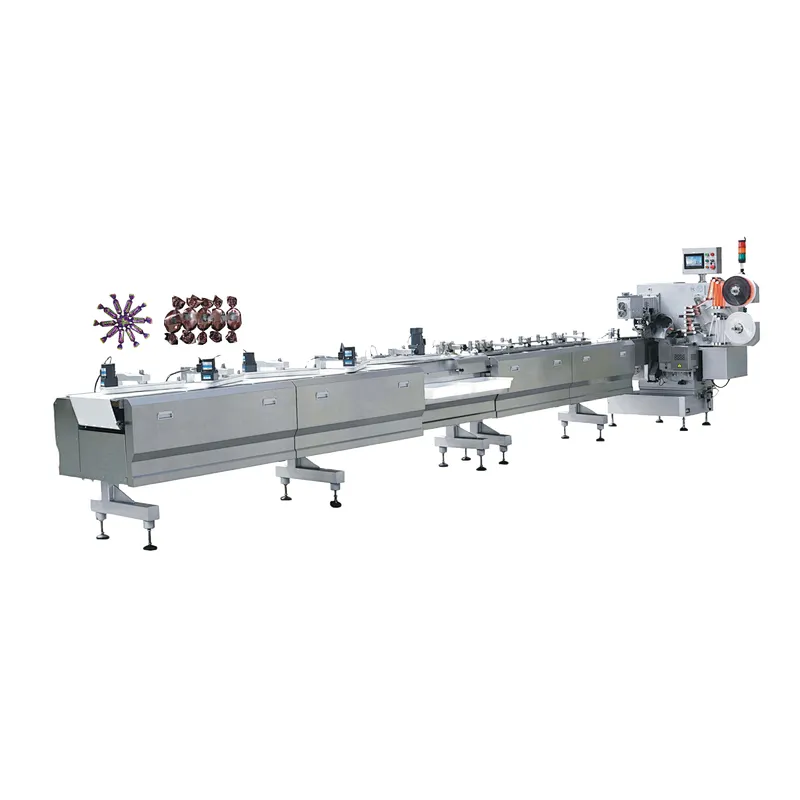

Application of Full Automatic Double-Twist/Single-Twist/Fold Packing Machine
This machine is suitable for packing the product that are not suitable for using the brush feeding way, like chocolate, crunchy candy, nougat, coating, crispy or sticky characteristic products. It can work together with the production line by customized design.
Features of Full Automatic Double-Twist/Single-Twist/Fold Packing Machine
1.This model uses fully automatic computer-controlled linear and double-twist/single-twist/folding packaging machines at the same speed to complete the entire packaging process. It has the characteristics of high degree of automation, easy operation, high efficiency, labor saving, novel structure, beautiful style, low voice, stable operation, low failure rate, convenient maintenance, e
2.Fully automatic computer control PLC touch screen, servo motor device system (instead of traditional mechanical differential and variable transmission) photoelectric sensor detection, so can compensate the material in the transport process with different speeds, bidirectional tracking to achieve automatic filling empty bag, thus effectively eliminating material tracking error, can reached 100% non empty packaging, reduce the waste of packing film and raw materials. Meanwhile, the transmission speed can be adjusted dynamically without changing the transmission gear.
3.Servo motors attached with frequency converter realize infinitely variable controlling. Which is accurate, energy efficient, durable and adjustable during operation
4.It has full servo motors controller system, can catch and keep material distance and protect the material surface very well
5.Equipped with debris hopper and suction device (optional).Making the precision of conveying and 100% packing rate.
6.Food contact parts are made of stainless steel and special surface treatment, with good smoothness and easy cleaning, which meets the QS food hygiene standard.
7.Humanized and simple operating Interface with six languages can meet the customer’s demand from different country.
8.Water cooling cycle system can better protect product characteristics and appearance, suitable for high quality packaging requirements
Main Technical Parameters of Full Automatic Double-Twist/Single-Twist/Fold Packing Machine
Packing speed:100-400（pcs/min）
Material Size
Length:15-42 mm
Width：15-30 mm
Thickness：6-25mm
Packing film:Cellophane, PVC、CPP、PET、,Wax paper, VMPET(for double/single twist packing)
Aluminum foil (Folding or whole wrapping)
Other Specification of Full Automatic Double-Twist/Single-Twist/Fold Packing Machine
Voltage：380V
Weight：2100KG
Total Power：7.5KW
Outsize：6901*1647*1729
