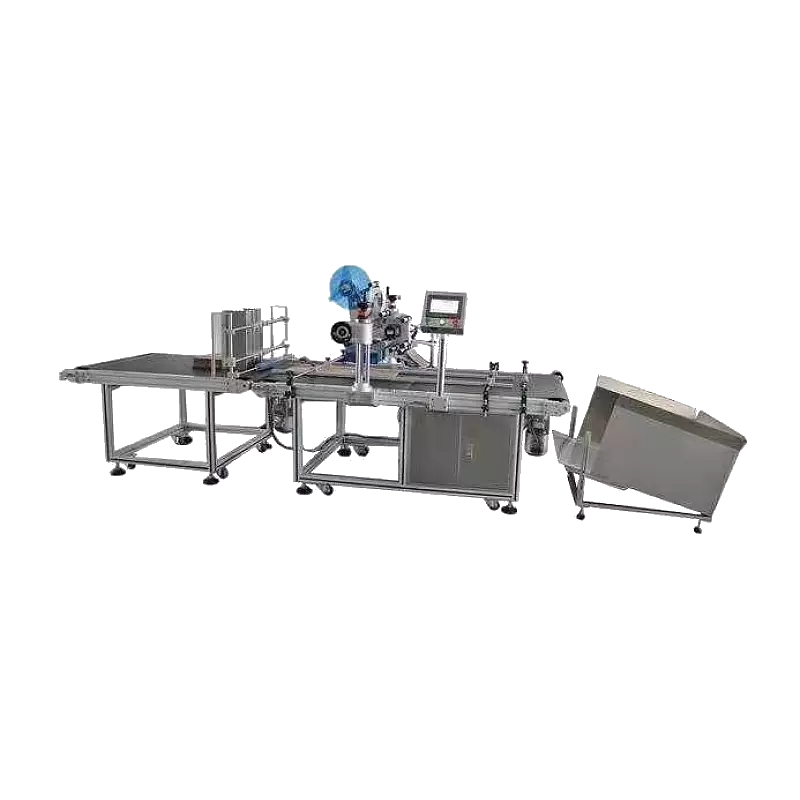

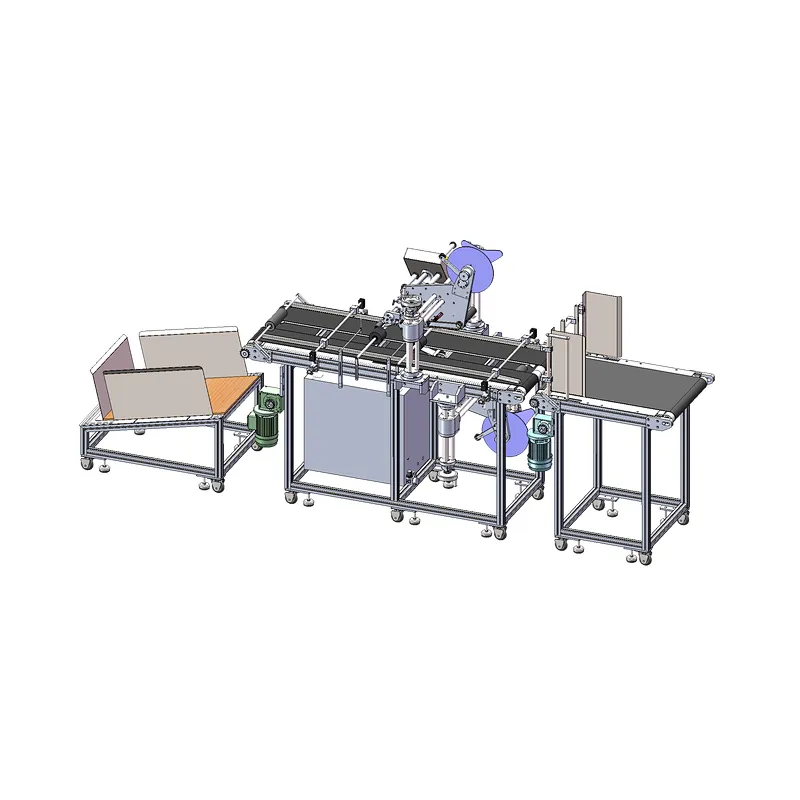

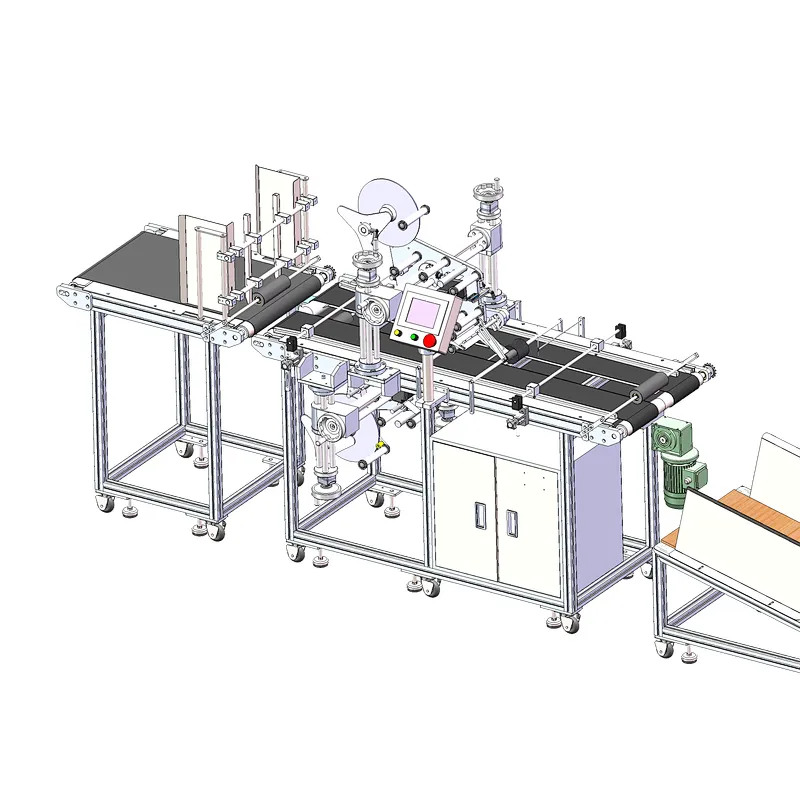

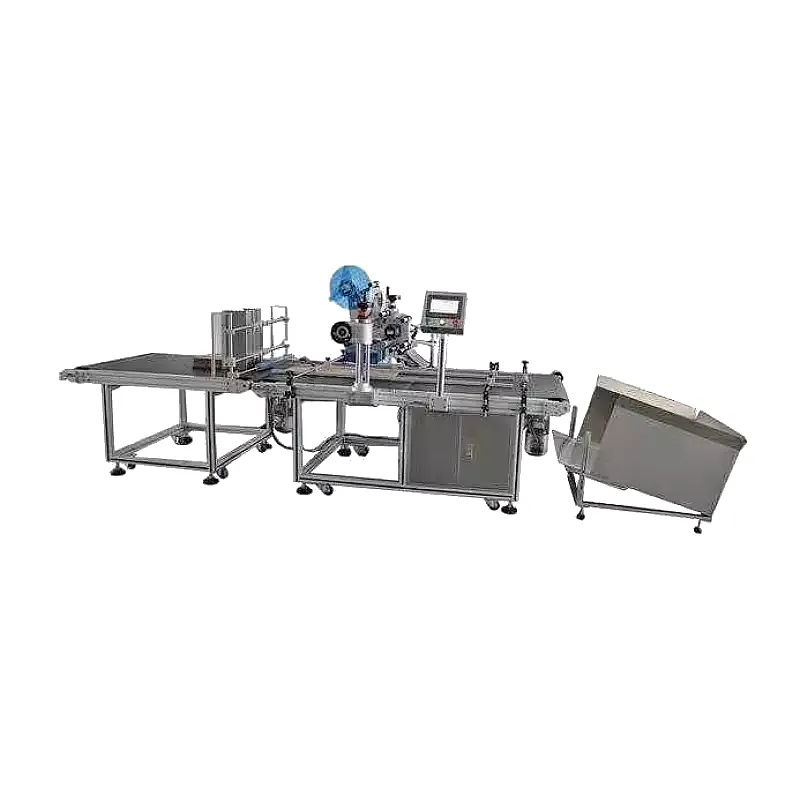

TK-T-8302 Automatic carton multifunctional labeling machine

TK-T-8302 Automatic carton multifunctional labeling machine

Model NO.: TK-T-8302
Delivery: FOB, CFR, CIF
Minimum order quantity: 1 set
Supply Ability: 100 set / Month
Stock Time: 30 Days

Quantity:

Product Description

Technical parameter of automatic carton multifunctional labeling machine
Labeling accuracy	±1~2mm
Labeling Speed	10~80pcs/min
Applicable label length	6mm~250mm
Applicable label size (backing paper width)	20mm~160mm
Applicable product size（LWH/D）	Length：40mm~1000mm
	Width：40mm~850mm
	Height：0.2mm~20mm
Power supply	220V/50HZ
Weight:about	About 250kg
Machine size（L×W×H）	About 4000mm×1000mm×1400mm

Basic Usage of automatic carton multifunctional labeling machine

Universal equipment for labeling carton before packing, used in Inventory management of the carton

According to the number of labeling requirements, supporting one, or more labeling head.optional automatic rewinding mechanism to achieve carton labeling,after collecting a stack.

Can be equipped with bar code printer to achieve integration of printing and labeling.

Can be installed inkjet coder to achieve carton Coding.

Can be installed rotating structure to achieve the front and back

labeling of cardboard.
