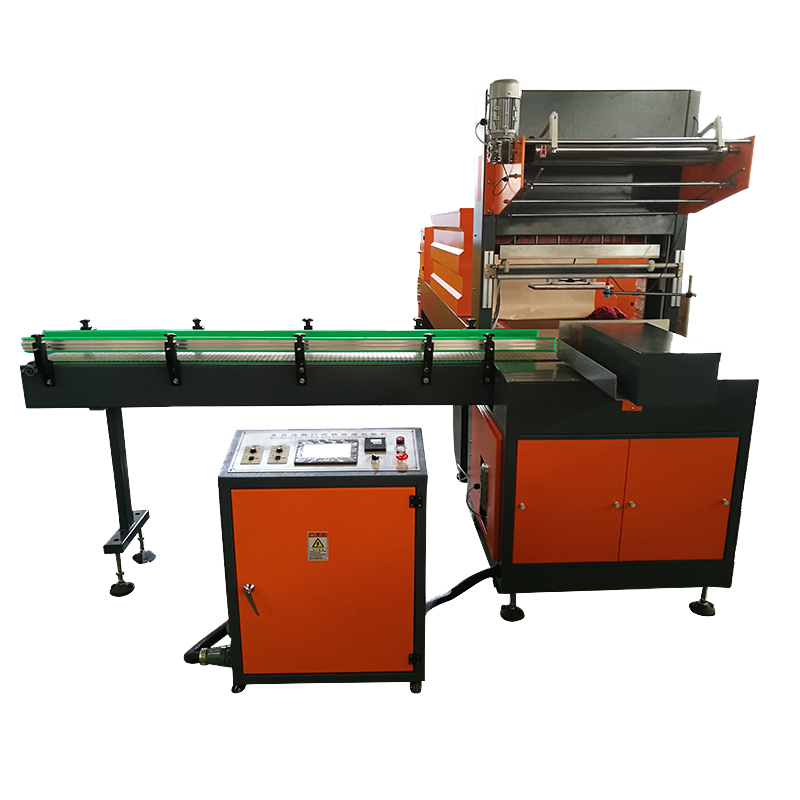

Fully automatic L-type shrink packaging machine

Model NO.: TK-LMB
Delivery: FOB, CFR, CIF
Minimum order quantity: 1 set
Supply Ability: 100 set / Month
Stock Time: 30 Days

Quantity:

Product Description

*Specification of fully automatic L-type shrink packaging machine

Model	TK-LMB
Input Power	28.0KW
Input Voltage	∮3,380/220VAC/50Hz
Production Efficiency	0-8package/minute
Size of Host Machine	5050L×3300W×1800H
Applicable Diameter of Bottle Body	25mm～120mm
Applicable Length of Label	30mm～250mm
Height of Conveying Belt	750mm～1100mm
Working Pressure	0.6～0.8Mpa
Packaging materials	PE hot shrink film

*Equipment structure and features

1.The sealing machine adopts the advanced structure of hot sealing, the sealing is firm, the edge is neat, and the sealing performance is good.

2.The sealing and cutting body is driven by cylinder, with guide posts at both ends, which can ensure the stability and reliability of sealing and cutting film.

3.The conveying trough adopts the flat conveying form,overall transportation in place,no need to change the template.Suitable for all kinds of bottle, easy to operate.

4.WithPID temperature controller, which is accurate and energy-saving.

5.The equipment through the automatic control system, with automatic feeding, bottling, shrinkage, cooling and shaping, the production process is stable and reliable, can adapt to a long time of work without downtime.

6.The imported high speed optical fiber sensor is used to count the feeding bottle, which is more accurate and stable.
