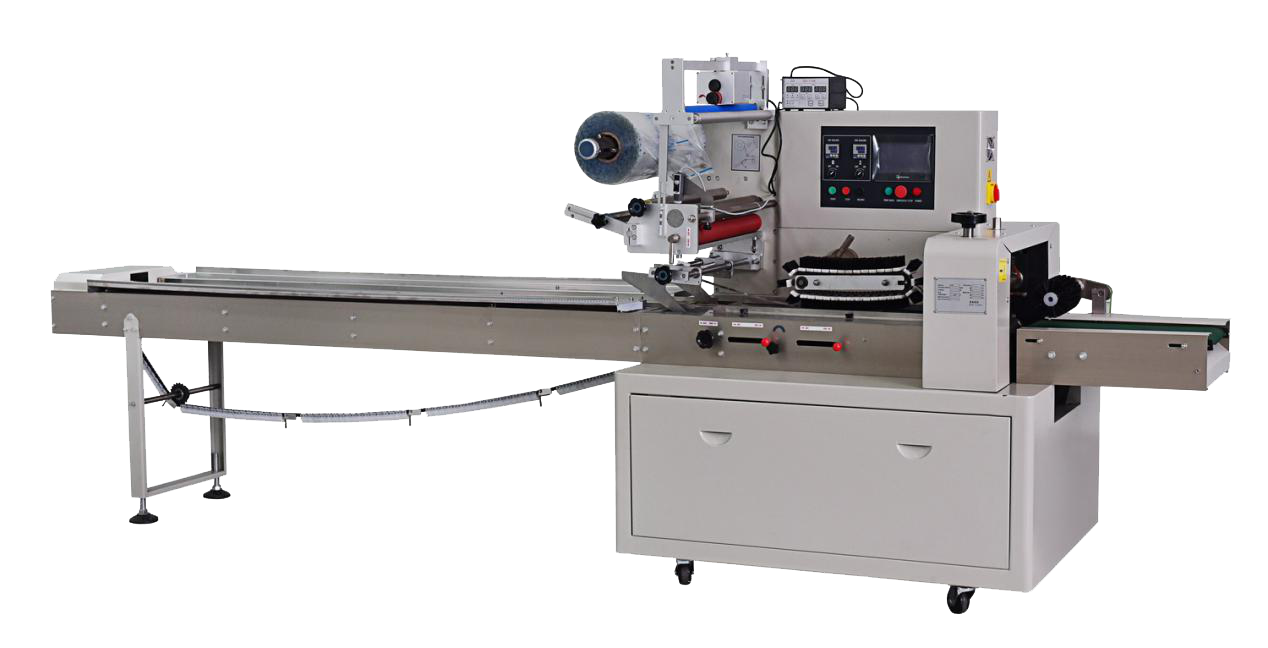

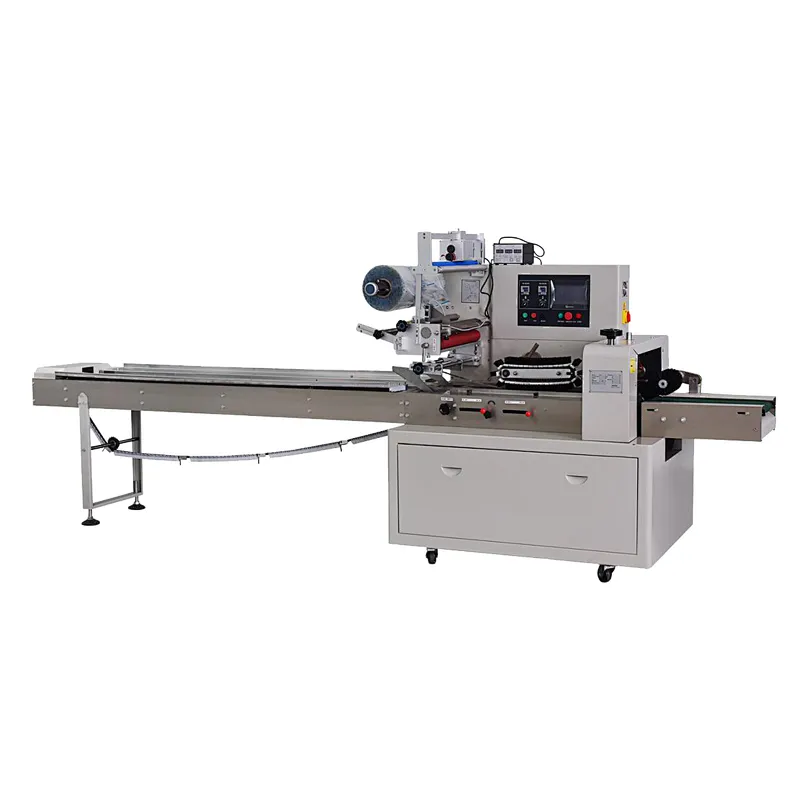

TK-350 packing machine

Performance characteristics of TK-350 packing machine

1. Double motor, frequency converter and PLC control, bag length is set cut already, don't need to adjust empty, one pace reachs the designated position, time-saving membrane.

2. The man-machine interface, convenient and quick parameter setting.

3. The fault self-diagnosis function, fault shows at a glance.

4. Glances standard Gao Gan degrees photoelectric tracking, sealing and cutting position, digital input more accurately in the position of sealing and cutting.

5. The temperature independent PID control, better suited to a variety of packaging materials.

6. Stop function, non-stick knives, do not waste envelope.

7. Drive system is concise, more reliable, more convenient maintenance.

8. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.

The technical specifications of TK-350 packing machine

AircraftTK-350

The film widthMax.350mm

Bag length  65-190mm  120-280mm

Width of the bag50-160mm

Products are highly Max.65mm

Roller diameter       Max.320mm

Packing speed   40-180Package/min

The power supply specification220V,50/60HZ,2.8KVA

The machine size(L)4020×(W)720×(H)1320

The machine qualityAbout 650Kg

For injection can be customized according to customer requirements
