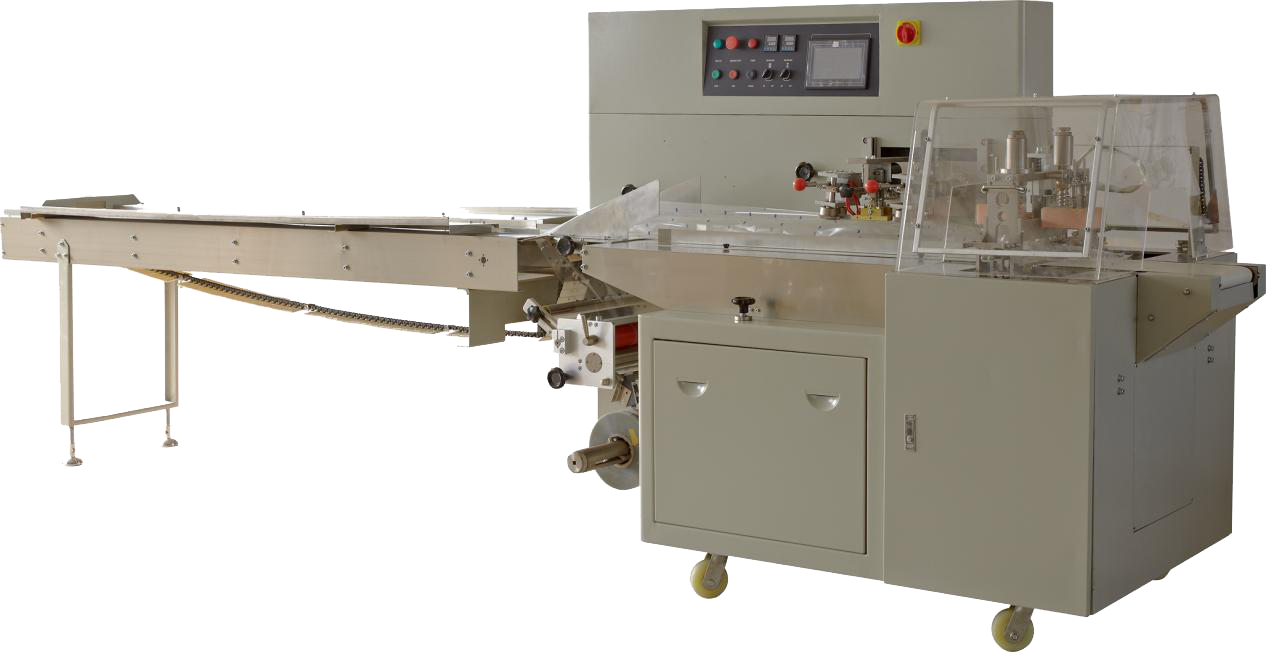

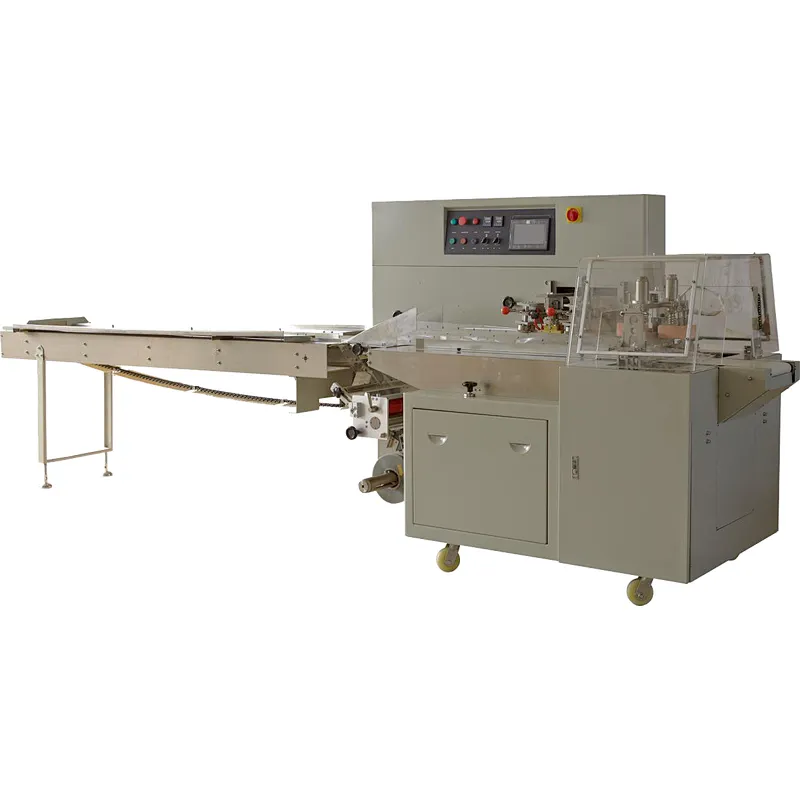

TK-600XW packing machine

Performance characteristics of TK-600XW packing machine

1. Double motor, frequency converter and PLC control, bag length is set cut already, don't need to adjust empty, one pace reachs the designated position, time-saving membrane.

2. The man-machine interface, convenient and quick parameter setting.

3. The fault self-diagnosis function, fault shows at a glance.

4. Glances standard Gao Gan degrees photoelectric tracking, sealing and cutting position, digital input more accurately in the position of sealing and cutting.

5. The temperature independent PID control, better suited to a variety of packaging materials.

6. Stop function, non-stick knives, do not waste envelope.

7. Drive system is concise, more reliable, more convenient maintenance.

8. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.

 The technical specifications of TK-600XW packing machine

AircraftTK-600XWSF

The film width Max.600mm

Bag length  120-450mm

Width of the bag100-250mm

Products are highly Max.5-80mm

Roller diameterMax.320mm

Packing speed 40-80 Package/min

The power supply specifications220V,50/60HZ,2.8KVA

The machine siz (L)4480×(W)980×(H)1510

The machine quality About 950Kg

For injection can be customized according to customer requirements
