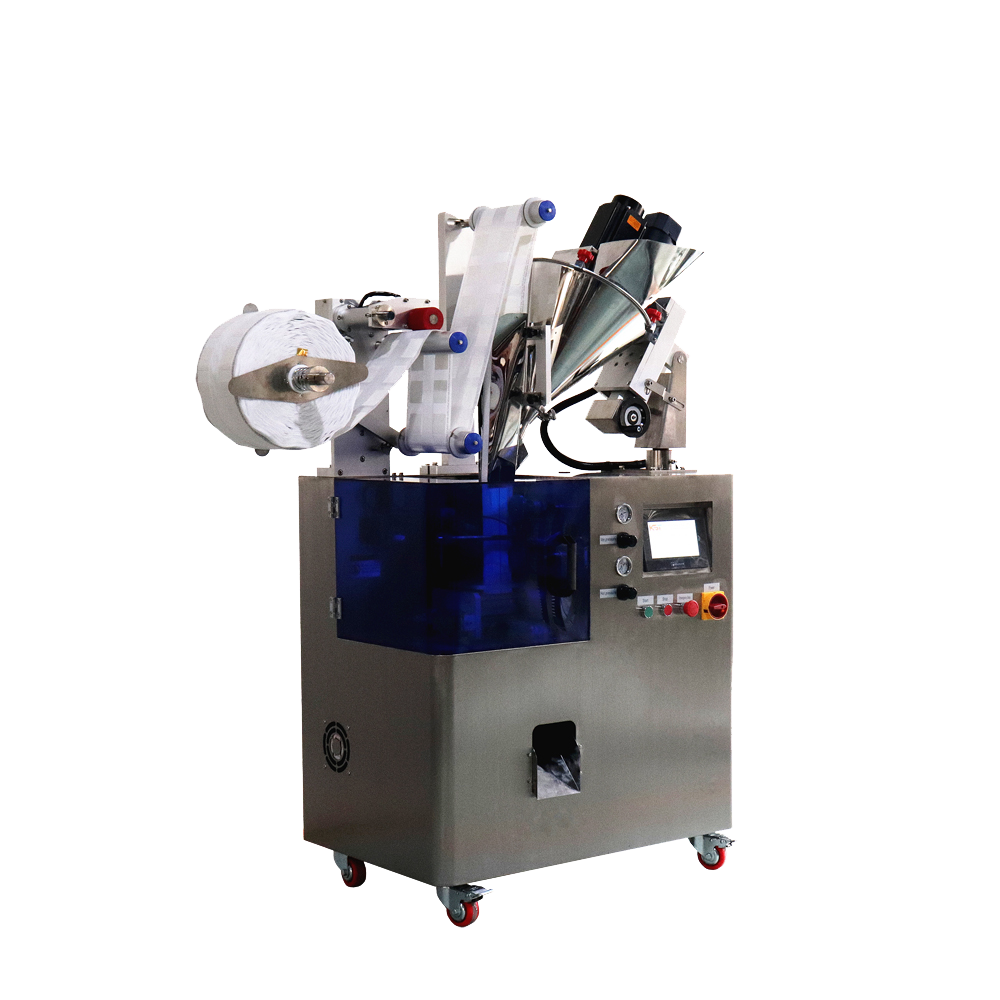

TK-F11 Drip Coffee Bag Packing Machine

Model NO.: TK-F11
Delivery: FOB, CFR, CIF
Minimum order quantity: 1 set
Supply Ability: 100 set / Month
Stock Time: 30 Days

Quantity:

Product Description

Applications of TK-F11 Drip Coffee Bag Packing Machine

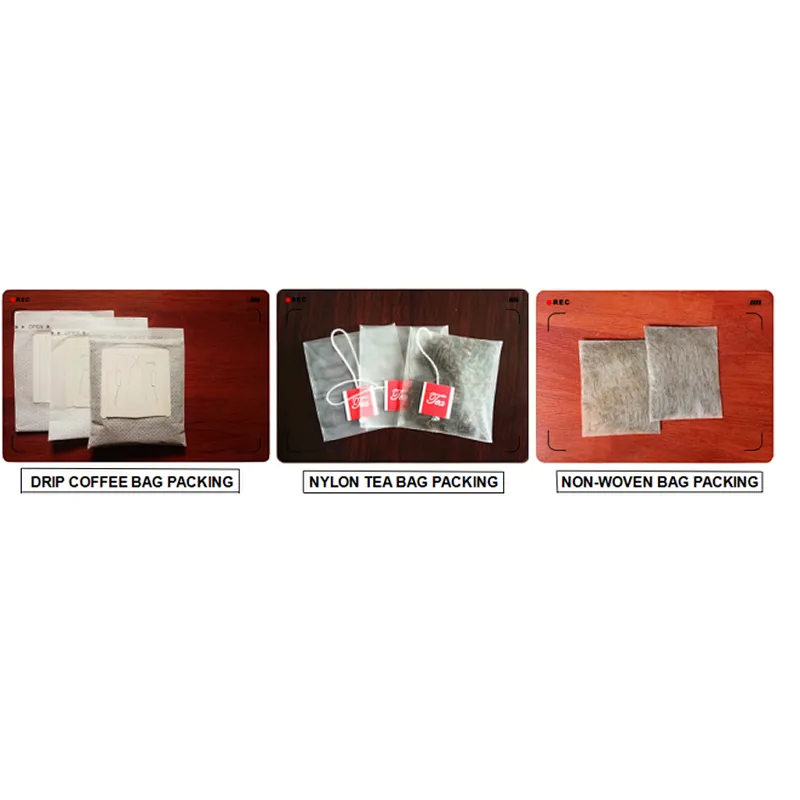

F11, multifunctional coffee bag packaging machine, specially designed for inner drip coffee bag packing. Besides, it can be widely applied also to pack non-woven coffee bag, PLA coffee bag, nylon tea bag etc.

Technical Specifications of TK-F11 Drip Coffee Bag Packing Machine

Working Capacity	30-40 bags/min
Filling Range	8~15 g
Feeding System	Slant screw with mixer (or Slide doser with vibrator as picture shown)
Film Width	Standard 180 mm (if other film width, pls show us earlier)
Sealing Type	3-side sealing
Recommend Bag Size	74*90 mm or customized
Sealing method	Ultrasonic Sealing
Power	220V Single phase 50/60Hz
Weight	310 kg
Overall Dimensions	1020 * 800 * 1800 mm
