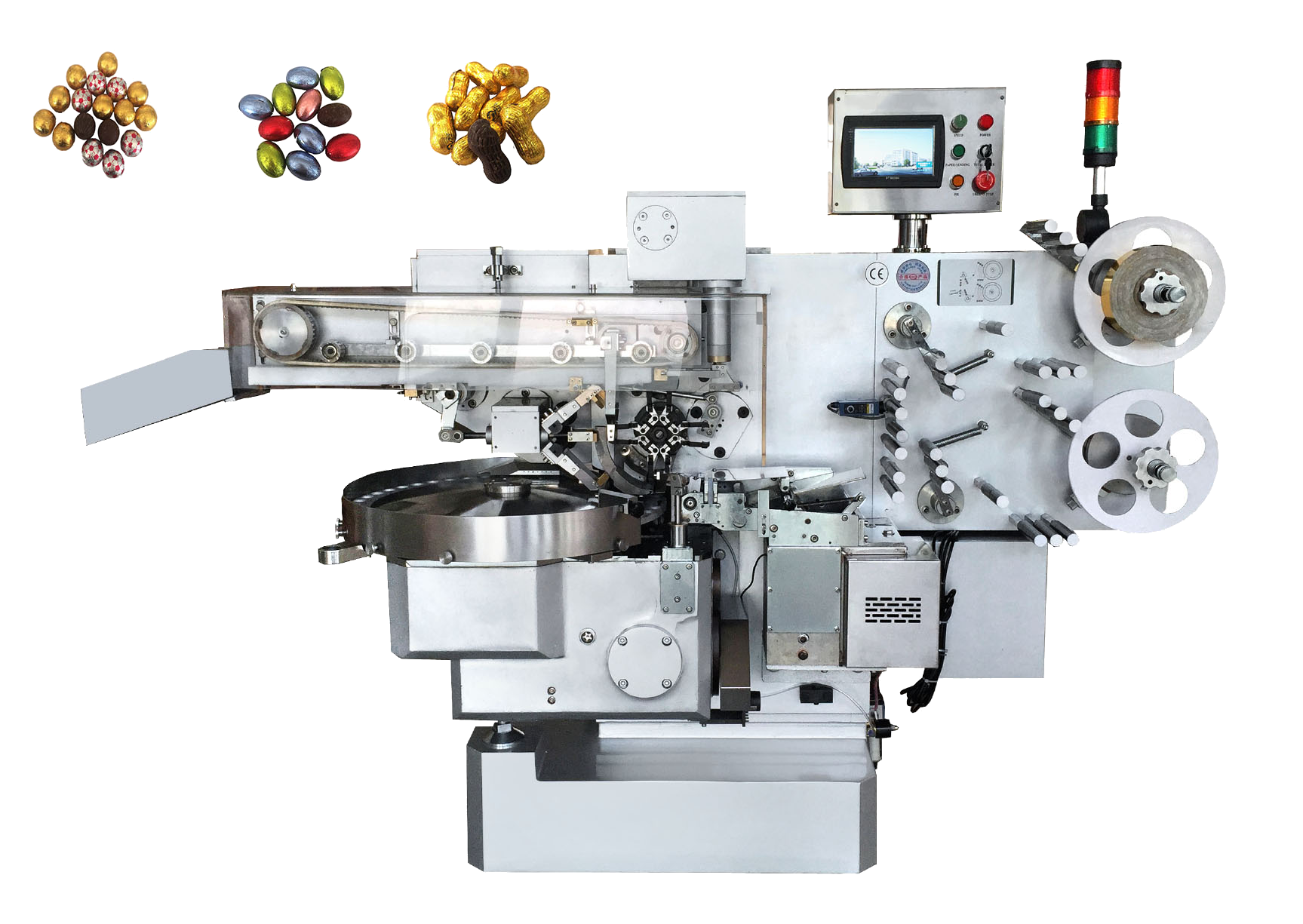

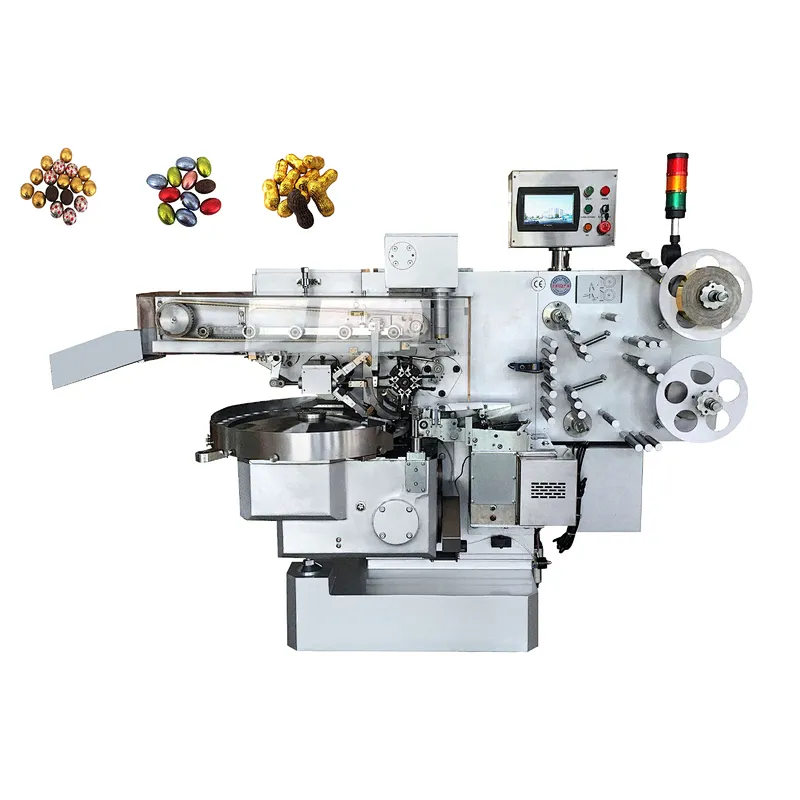

TK-G810 Full Automatic Foll Wrapping Machine

Application of TK-G810 Full Automatic Foll Wrapping Machine

This machine is used for foil packing the chocolate and candy with round or olive shape.

Features of TK-G810 Full Automatic Foll Wrapping Machine

1.The main core parts adopt modern high precise type intermission gear-dividing and cam-driving, hich makes all the action accurate.

2.Adopting the modern high-end servo motor and automatical PLC attached with touch screen which makes the empty packing rate 100%，

3.With the function of overload protect,electricity leak protect,no-film alarm etc.

4.Food touch parts adopt stainless steel,looking smooth and easy for washing,meeting international food sanitation standards.

5.It has reasonable structure with esthetic style,running smoothly with easy operation.

Main Technical Parameters of TK-G810 Full Automatic Foll Wrapping Machine

Packing Speed:100-450（pcs/min）

Raw Material Size

Length：16-28 mm

Width：16-22 mm

Thickness：6-20 mm

Packing film:aluminium film

Other specification of TK-G810 Full Automatic Foll Wrapping Machine

Voltage：380V

Total power：3.3KW

Net weight：1150KG

Dimension：2251*919*1615 mm
