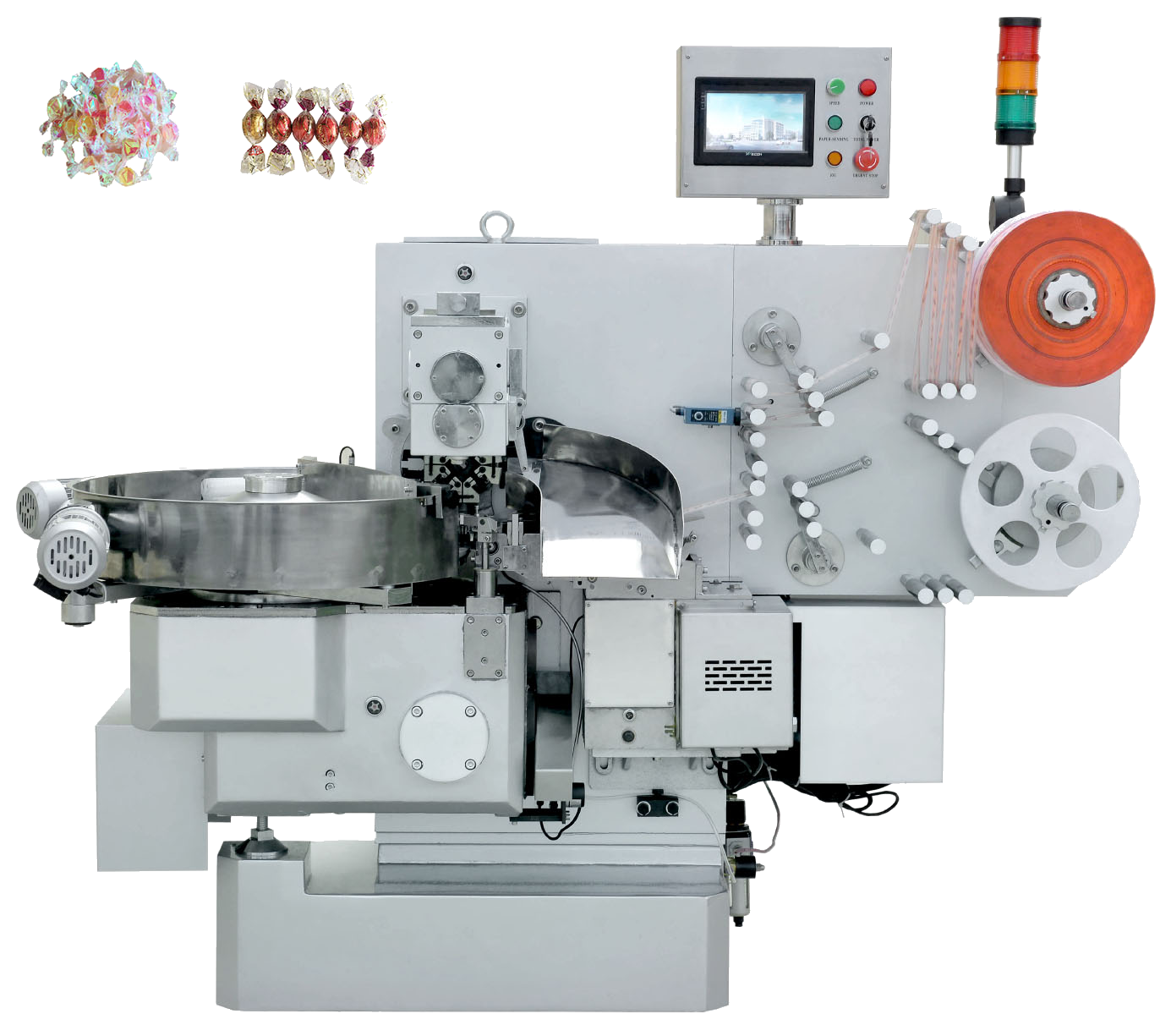

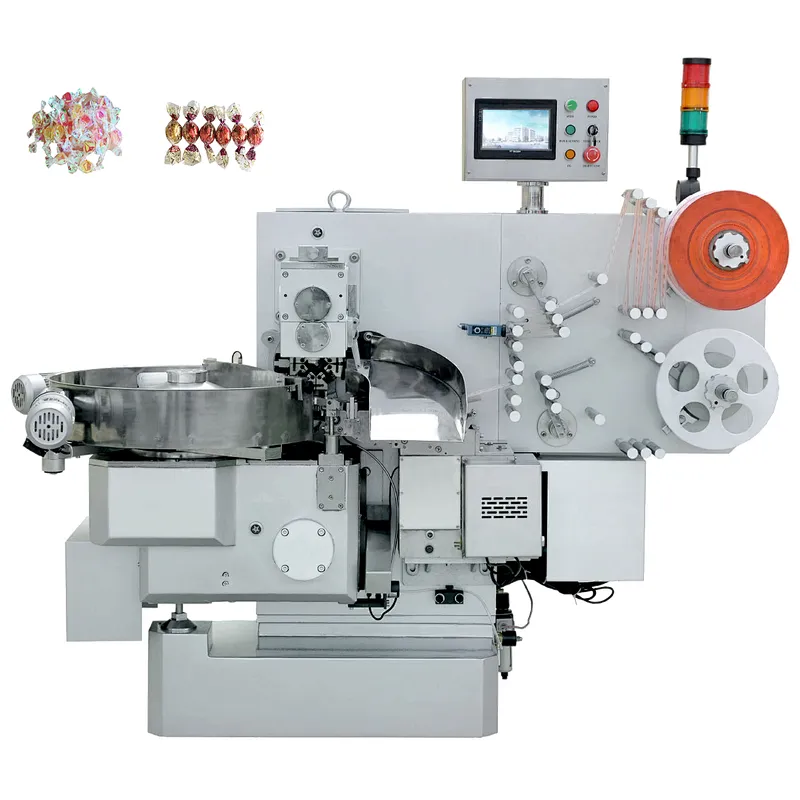

TK-S800 High-Speed Full-Automatic Double-Twist Packing Machine

Application of TK-S800 High-Speed Full-Automatic Double-Twist Packing Machine

This machine is used for double-twist packing candy, chocolate, beef cubes with the shapes of rectangle, ellipse, waist-round, cylindrical, spherical, square and all food with regular shapes.

Features of TK-S800 High-Speed Full-Automatic Double-Twist Packing Machine

1.Main core part of this machine adopts imported, new style, high-density Cam indexing unit and cam gear can reach exact movement.

2.Its frequency converter and high-precise sensor with bi-directional tracking assure 100% empty packing.

3.Customer can use single layer or double layer packing film by themselves.

4.Auto material sending and feeding with double layer and two ways device,keep the candy away from attaint.

5.It has reasonable structure with esthetic style,running smoothly with less noise.

6.We can customize this machine special for nougat and chocolate(together with conveyor belt).

7.Two servo control system for option(control film feeding and cutters)

Main Technical Parameters of TK-S800 High-Speed Full-Automatic Double-Twist Packing Machine

Packing Speed:100-600（pcs/min）

Raw material size

Length:12-32 mm

Width：12-26 mm

Thickness：6-25 mm

Packing film:glass paper、PVC、CPP、PET、wax paper、composite material ETD.

Other specification of TK-S800 High-Speed Full-Automatic Double-Twist Packing Machine

Voltage：380V

Total power：2.5KW

Net weight：1080 KG

Dimension：1900x1077x1615mm
