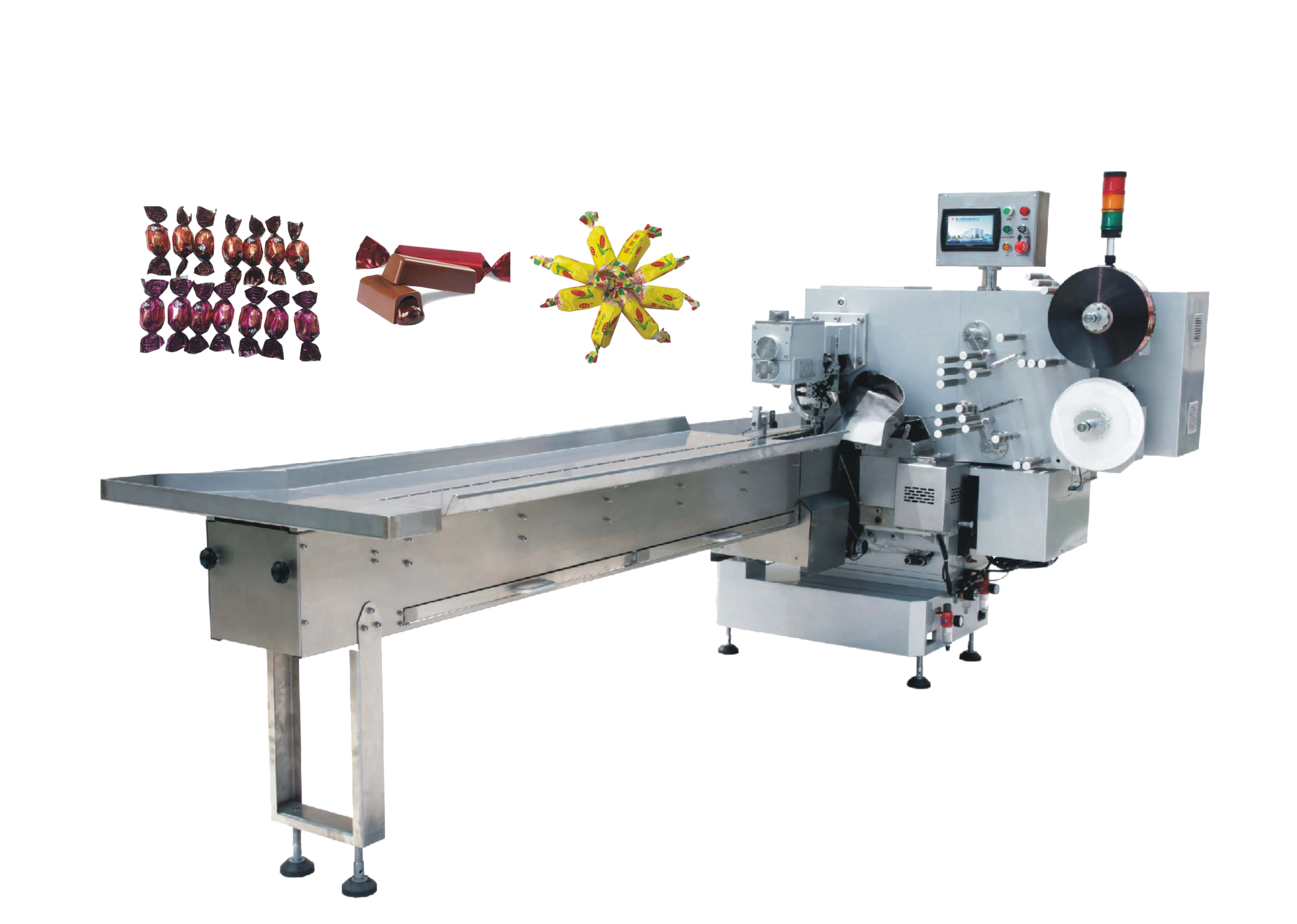

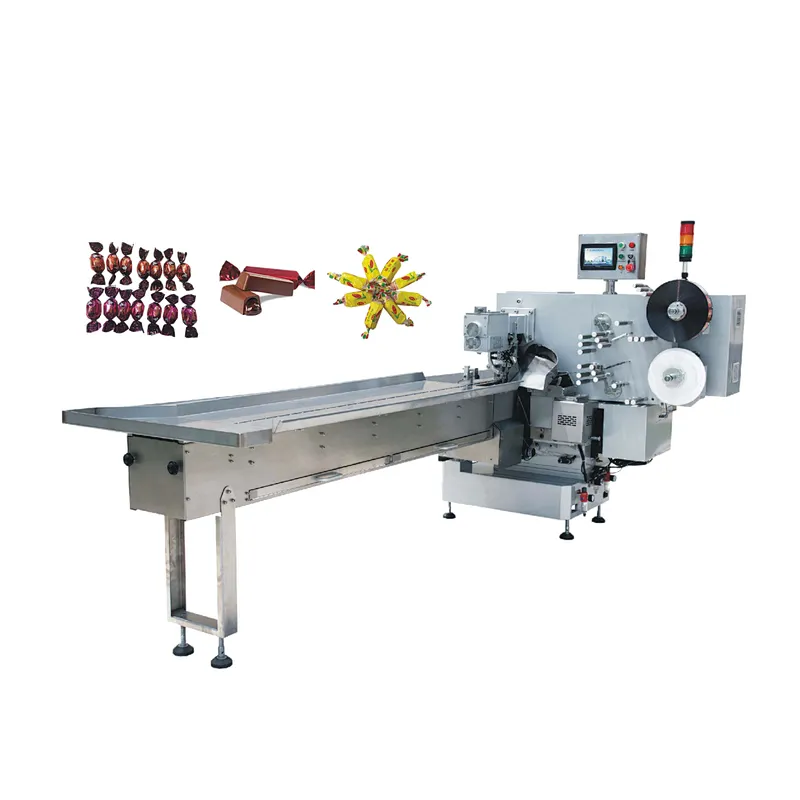

TK-S800X03 Manual Feeding Double Twist Packing Machine

Application of TK-S800X03 Manual Feeding Double Twist Packing Machine

This machine is used for double-twist packing candy, chocolate, beef cubes with the shapes of rectangle, ellipse, waist-round ,cylindrical, spherical, square and all food with regular shapes.

Feature of TK-S800X03 Manual Feeding Double Twist Packing Machine

1.The main core parts which adopt imported modern high precise type intermission gear-dividing and cam-driving,so all the action are very accurate.

2.Its frequency converter and high-precise sensor with bi-directional tracking assure 100% empty packing.

3.Customer can use single layer or double layer packing film by themselves.

4.Equipped with two servo power system for film sending and film cutting, can adjust the film length automatically no need to change the gear and reduce the cutter abrasion, easy for maintenance

5.It has reasonable structure with esthetic style, running smoothly with less noise.

Main Technical Parameters of TK-S800X03 Manual Feeding Double Twist Packing Machine

Packing Speed:100-400（pcs/min）

Folded Bag Size:

Length：12-45mm

Width：12-26 mm

Thickness：6-25 mm

Packing film:glass paper、PVC、CPP、PET、wax paper、composite material ETD.

Other specification of TK-S800X03 Manual Feeding Double Twist Packing Machine

Voltage：380V

Total power：3.5KW

Net weight：  1500KG

Dimension：3200x1650x1685 mm
