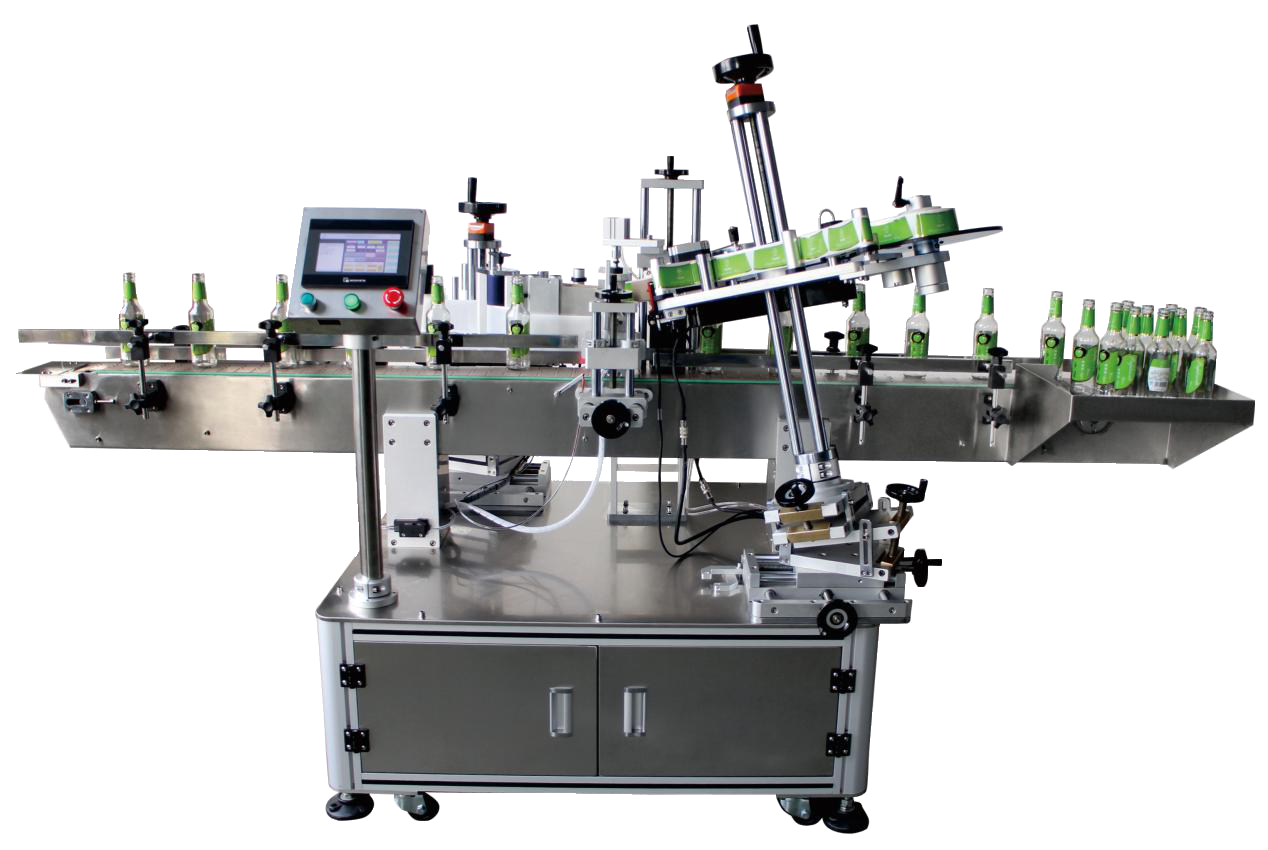

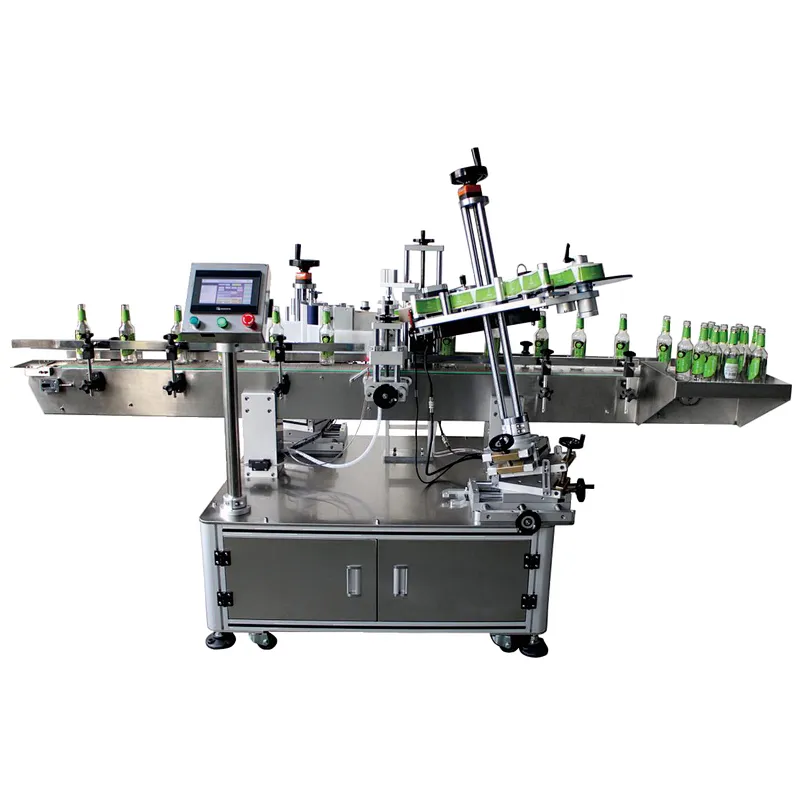

TK-T-820048 Round bottle front and back label, neck label labeling machine

Model NO.: TK-T-820048
Delivery: FOB, CFR, CIF
Minimum order quantity: 1 set
Supply Ability: 100 set / Month
Stock Time: 30 Days

Quantity:

Product Description

Technical parameter of TK-T-820048 Round bottle front and back label, neck label labeling machine
Labeling accuracy	±1mm
Labeling Speed	Step	30~120pcs/min
	Servo	40~150pcs/min
Applicable Dimensions	Length	20mm~250mm
	Width	30mm~90mm
	Height	60mm~280mm
Applicable label size (backing paper width)	Length	20mm~200mm
	Width	20mm~160mm
Applicable power supply	220V/50HZ；
Power	Traction stepper：1600W Traction servo：2100W
Pressure:	0.4~0.6Mpa
Weight	About 2500kg
Machine size（L×W×H）	About 3104mm×1337mm×1535mm

Basic Usage of TK-T-820048 Round bottle front and back label, neck label labeling machine

It is applicable to various of cylindrical or small taper wine bottles, beer bottles and other products. The positive and negative double labels and neck labels are pasted on the bottles once.

Increase the positioning and detection of electric sensor to achieve the fixed-point labeling.

Such as: beer bottles, cocktail bottles, etc.
