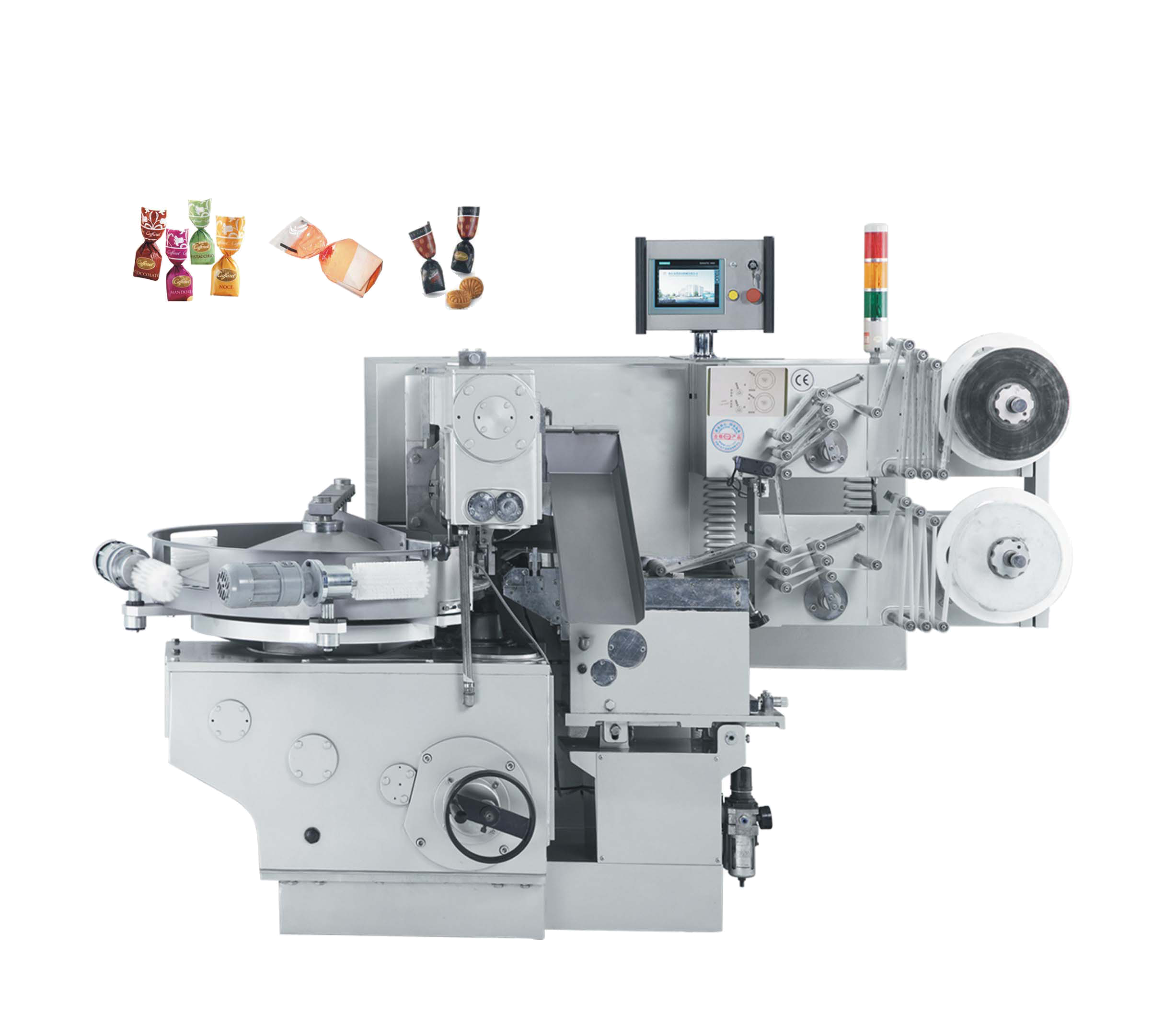

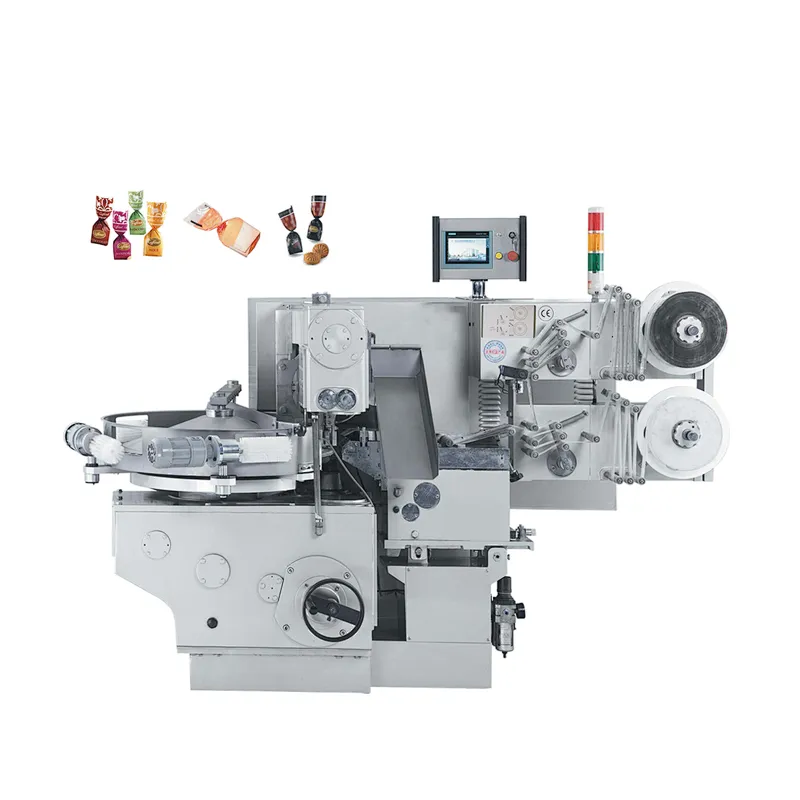

Application of Full Automatic Single-Twist Packing Machine
This machine used for single-twist packing hard candy with regular shape: ellipse, waist-round shape, round, square etc.
Feature of Full Automatic Single-Twist Packing Machine
1.It adopts high-precision gear segmentation and CAM drive mechanism device to ensure accurate running.
2.AC-motors attached with frequency converter realize infinitely variable speed controlling, which is accurate ,energy efficient, durable and adjustable during operation.
3.Controlled by computer automatically with PLC and photocell sensor device. The detection and bi-directional tracking photoelectric sensor ensure the speediness of tracking and accuracy of drawing, which can eliminate the error of packing and reduce the water of packing film and raw materials. The packing rate can reach 100%
4.Simens servo motor attached with feeding and cutting packing film dynamic adjustment without changing gears.
5.With function of overload protect, electricity leak protect ,oil circle ,electric circle faults alarm, no film alarm.
6.Auto material sending and feeding with double layer and two ways device,keeping the candy away from attaint.
7.All the parts that touched with food are stainless steel, easilyu washing and meets ISO food hygiene standard.
8.Can use single layer or double layer packing film.
9.It can equip automatic hopper
Main Technical Parameters of Full Automatic Single-Twist Packing Machine
Packing speed:100-350pcs/min
Raw material size:
Length：16-30 mm
Width：16-28mm
Thickness：10-20mm
Packing film: Glass paper, PVC,CPP,PET wax paper, composite material ETD.
Other specification of Full Automatic Single-Twist Packing Machine
Voltage：380V
Total power ：2.5KW
Net weight：2000KG
Dimension：2320*1447*1800mm
