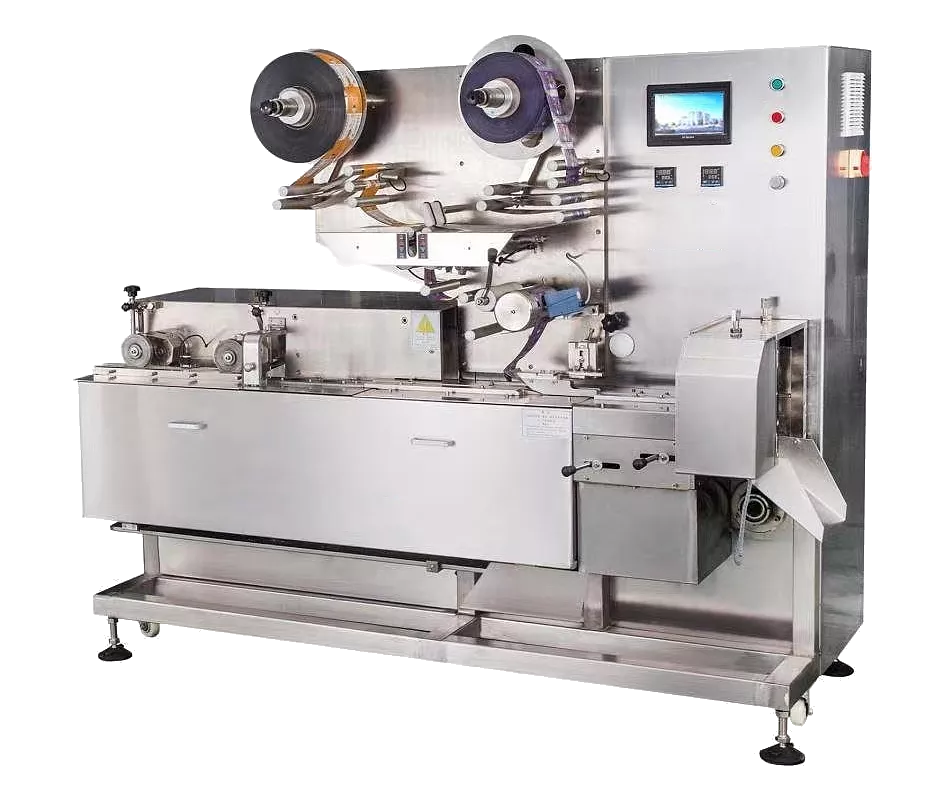

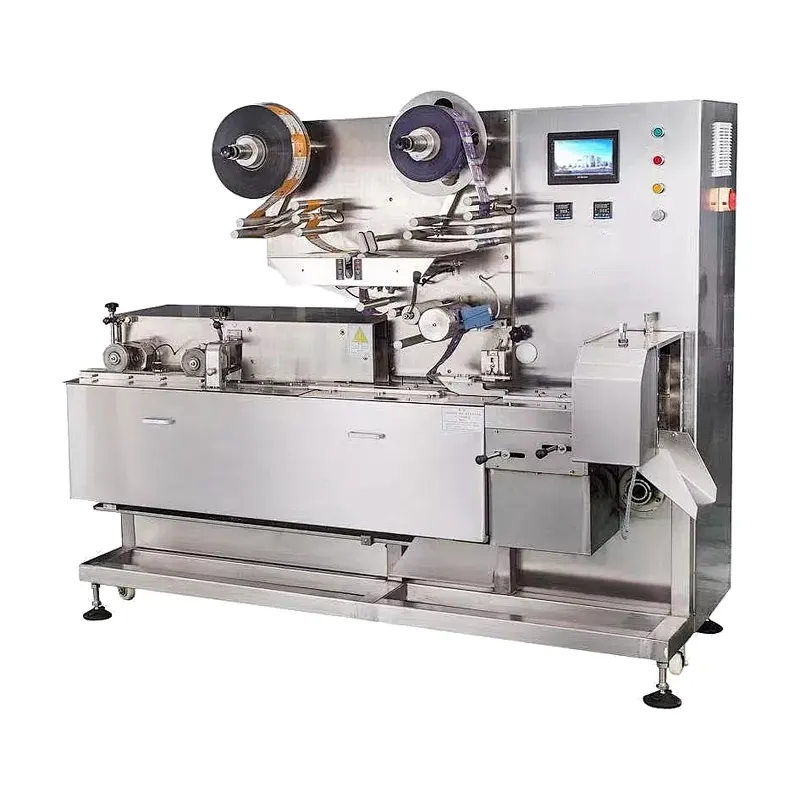

TK-Z1205Q Full Servo Cutting And Pillow Packing Machine

Model NO.: TK-Z1205Q
Delivery: FOB, CFR, CIF
Minimum order quantity: 1 set
Supply Ability: 100 set / Month
Stock Time: 30 Days

Quantity:

Product Description

Function of TK-Z1205Q Full Servo Cutting And Pillow Packing Machine

This machine is suitable for continuous block and pillow packaging of candy, pastry and other regular shaped items.

Characteristics of TK-Z1205Q Full Servo Cutting And Pillow Packing Machine

1.Automatic film splicer device.

2.Food touch parts adopt stainless steel,looking smooth and easy for washing,meeting international food sanitation standards.

3.Durable structure design prolongs the machine using time and the machine can work separately,install,adjust and repair.

4.It has advantages of work stable,good sealing,low noise and high speed.

Main Technical Parameters of TK-Z1205Q Full Servo Cutting And Pillow Packing Machine

Packing Speed :50-500pcs/min

SHARE:rectangular,square shape,cylindrical shape etc.

Dimensions: 2000*1000*1580mm

Net Weight: 1000KG

Total power: 4.5KW

Voltage: 220V,50HZ

4 servo drives, the newly added servo control is the feeding servo function of the packaging equipment mouth

Material size: 20-180mm

NO.	NAME	QTY	COMPONENT
1	Touch screen	1	WEIKONG
2	Control	1	ZHENGYUNDONG
3	Servo motor	4	RIDING
4	Servo drive	4	RIDING
5	Electronic eye	1	YATAI
6	Temperature module	2	YATAI
7	Other electrical appliances		DELXI
