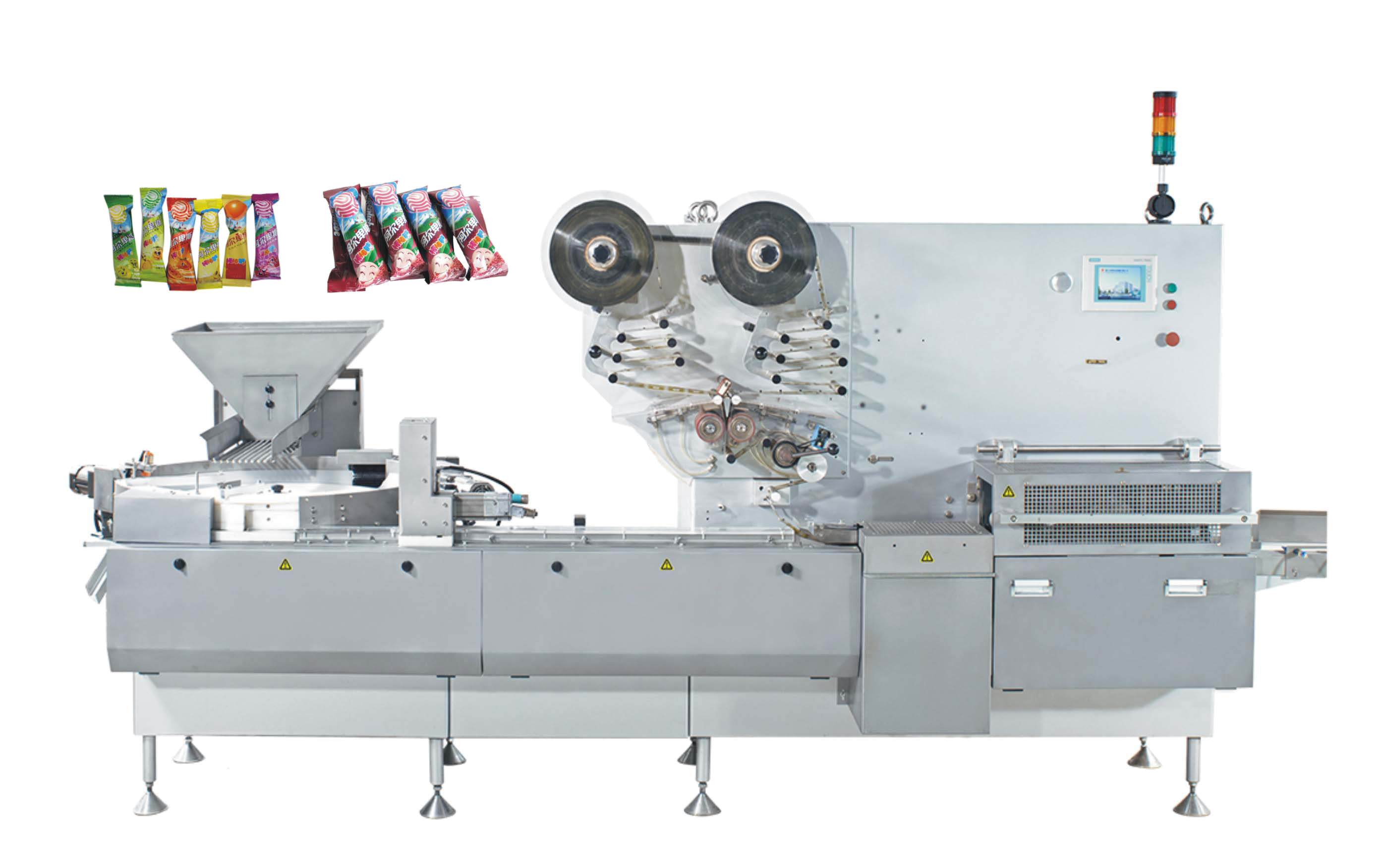

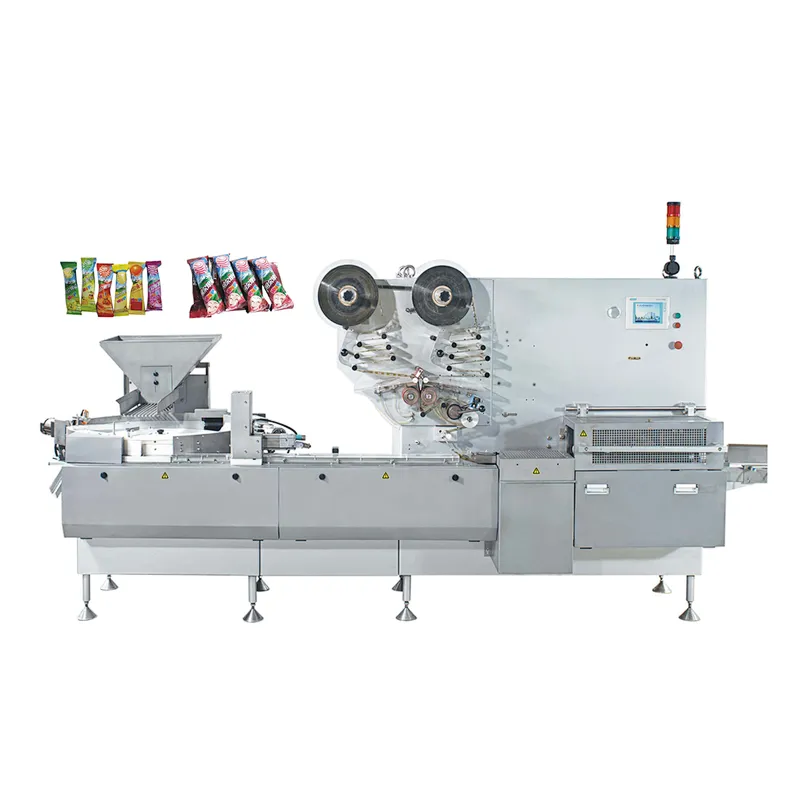

TK-Z500 High Speed Full Automatic Lollipop Packing Machine

Application of TK-Z500 High Speed Full Automatic Lollipop Packing Machine

It applies for packing lollipop and other solid food with regular shape into rosaries style. Adopting the highest technology in the world, to makes its packing speed reach the highest.

Features of TK-Z500 High Speed Full Automatic Lollipop Packing Machine

1.Adopting advanced Siemens Servo control system, can quickly and easily set the package dimension and unit quantity of each rosaries products or the quantity of continue packaging

2.With multi-temperature areas control system, by setting data through touch panel, to ensure the excellent sealing.

3.It has humanized efficient software with automatic packing film replacement function can save film and time.

4.It has automatically warning alarm system, all warning will display on PLC, easy to operation and maintenance.

5.Automatic product compensation device ensures its very low no-empty package rate.

6.Automatic empty package blow away device ensure the package qualification rate

Main Technical Parameters of TK-Z500 High Speed Full Automatic Lollipop Packing Machine

Packing Speed;100-500（pcs/min）

Folded Bag Size: 80-170mm

Raw Material Size

Length：10-15 mm

Width：10-30 mm

Thickness：5-20mm

Packing film:PET/CPP、OPP/CPP and other hot sealing film material

Other specification of TK-Z500 High Speed Full Automatic Lollipop Packing Machine

Voltage：380V

Total power：9KW

Net weight：1300KG

Dimension：4253*1940*2009mm
