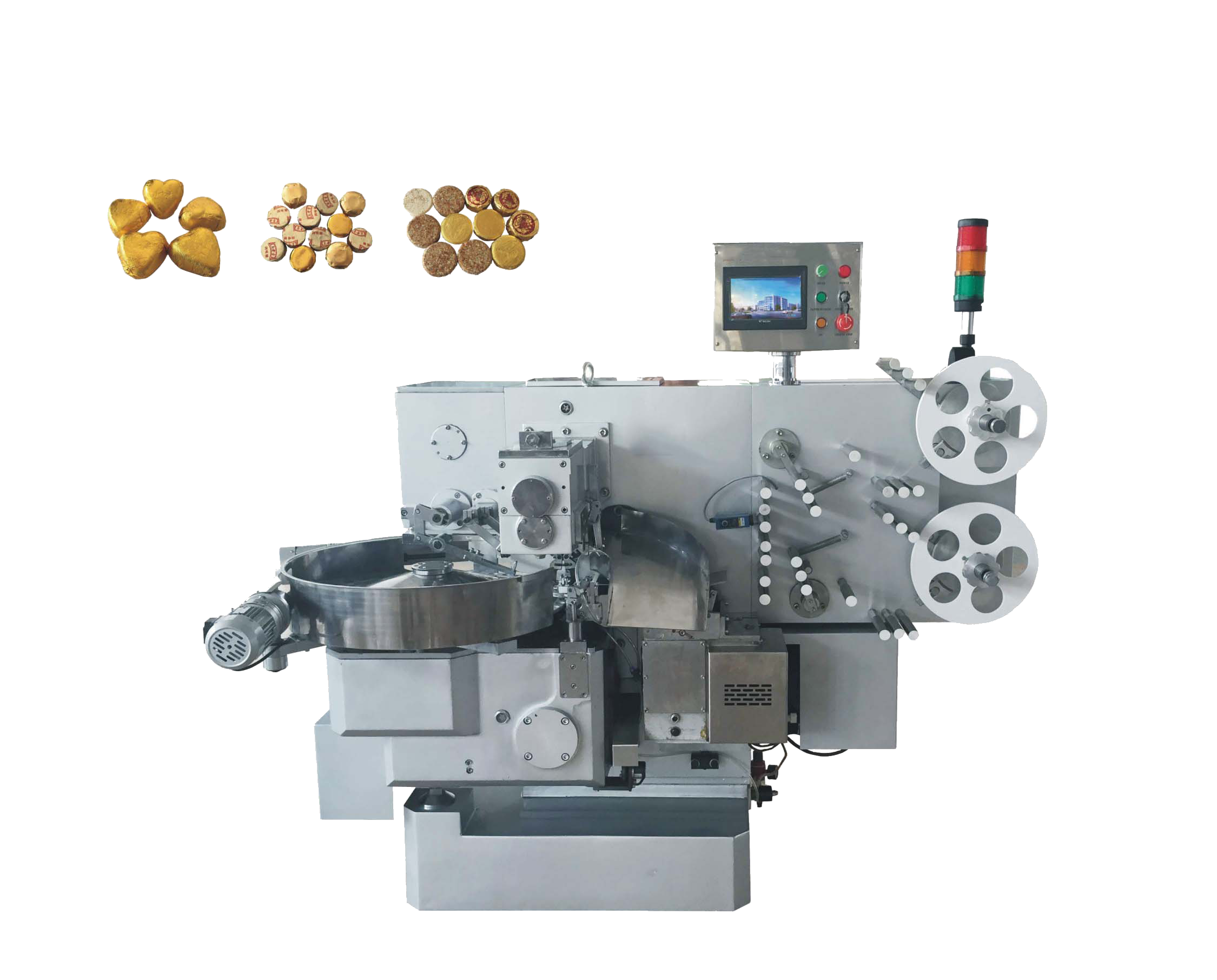

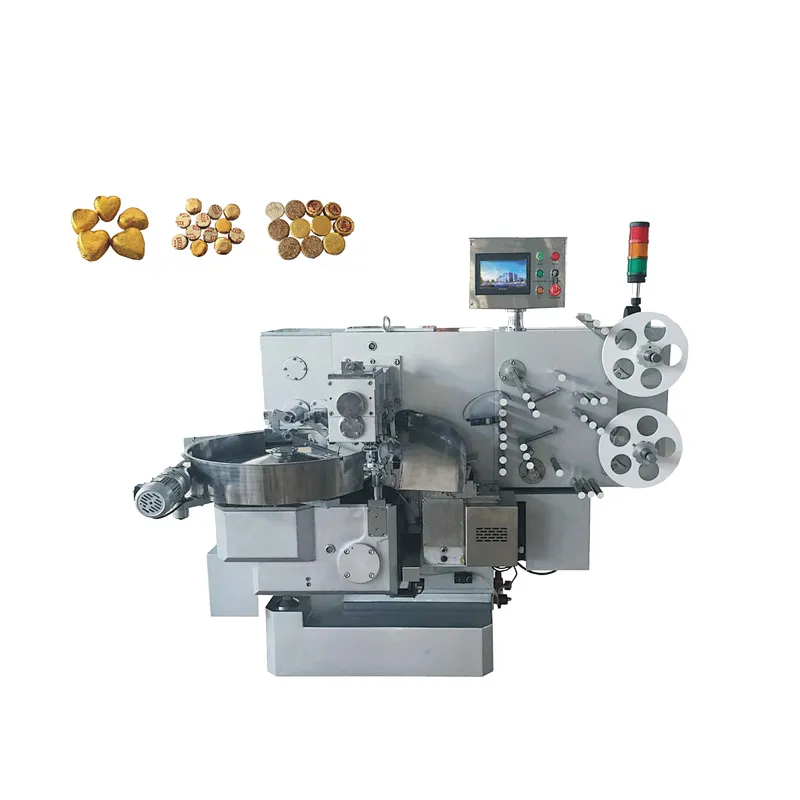

TK-Z710 Full Automatic Folding Packing Machine

Application of TK-Z710 Full Automatic Folding Packing Machine

This machine is used for folding packing solid food with regular shapes, button disc, square etc.

Feature of TK-Z710 Full Automatic Folding Packing Machine

1.It adopts high-precision gear segmentation and CAM drive mechanism device to ensure accurate running.

2.frequent speed adjustment, high-precision sensor inspection with detection and bi-directional tracking function can ensure 100% no-empty package.

3.Servo film-feeding controller ensure dynamically adjusting on film length and feeding speed by automatically without changing gear.

4.Can be allocated with auto hopper.

5. Easy to operate, high efficiency, manpower saving, pretty style, low noise, working smoothly and convenient to repair.

Main Technical Parameters of TK-Z710 Full Automatic Folding Packing Machine

Packing speed:100-350pcs/min

Raw material size:

Length：16-28 mm

Width：16-22mm

Thickness：6-20mm

Packing film:Aluminum film

Other specification of TK-Z710 Full Automatic Folding Packing Machine

Voltage：380V

Total power ：2.5KW

Net weight：1080KG

Dimension：1879*1077*1615mm
