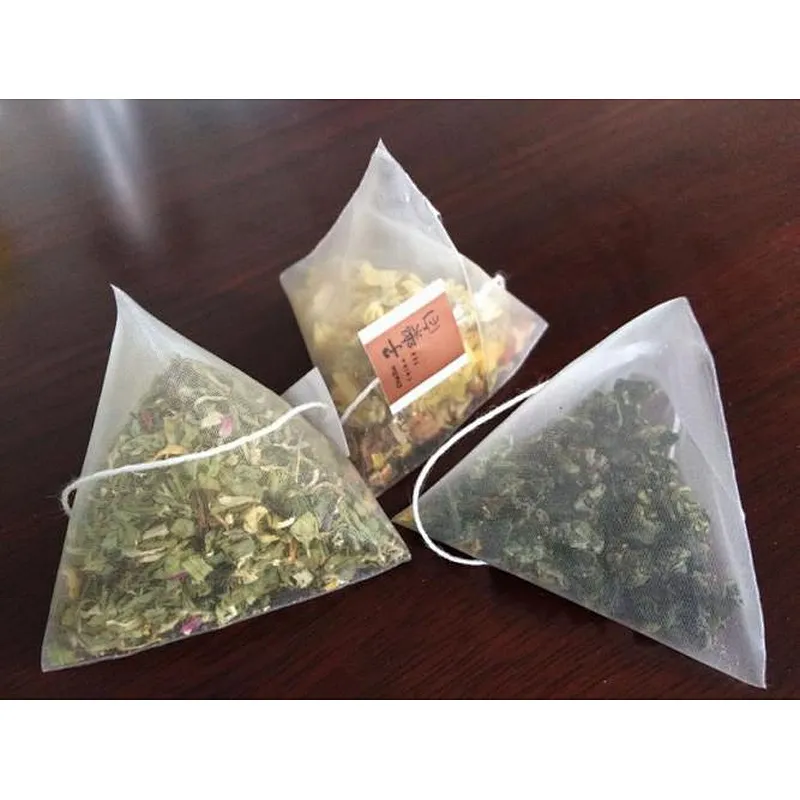

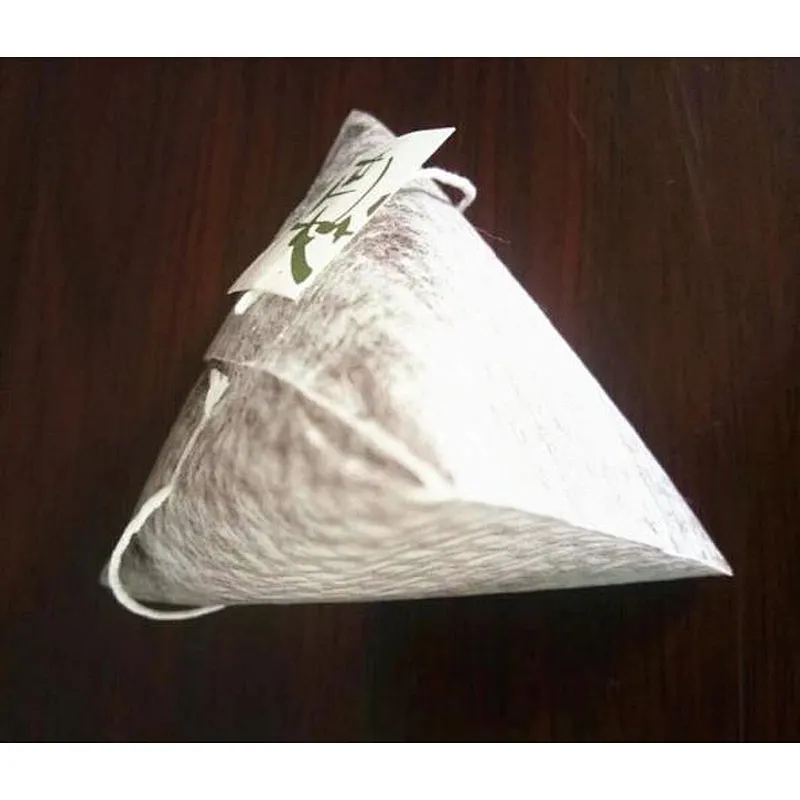

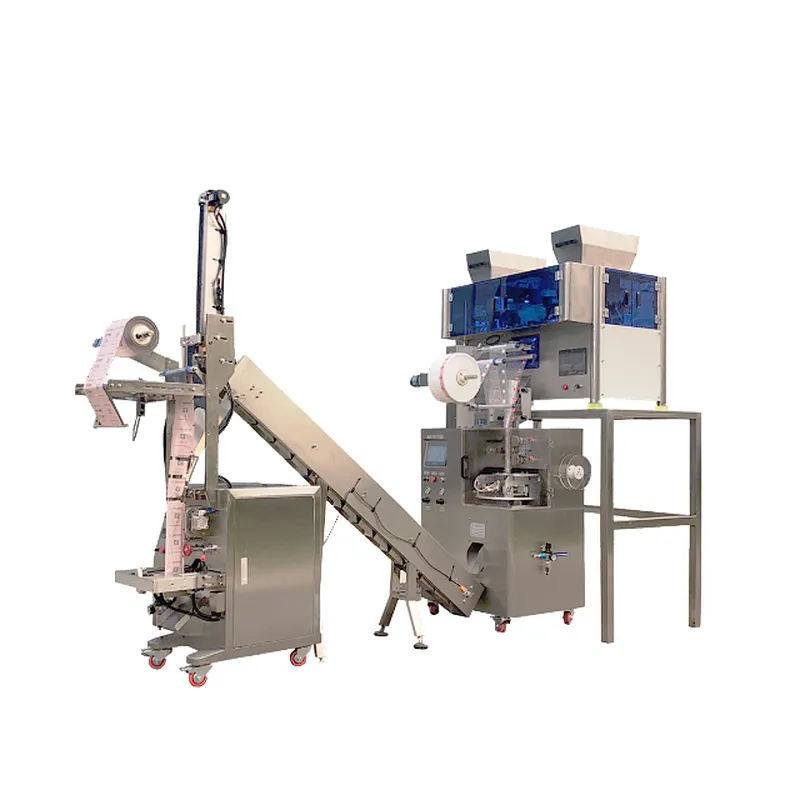

1. Application of TK-160-4S TK-160-4S Pyramid Tea Bag With Outer Envelope Machine
*This model is designed specially for packing pyramid tea bags with outer envelope.
*Suitable for packing all kinds of tea, such as green tea, black tea, flower tea, herbal tea,etc.
*With optional MULTI-HEAD weigher, meet the client’s requirements of different working speed.
*Can handle differentpacking materials such as Nylon,Cornstarch( PLA）, PET, Non woven fabrics or other ultrasonic sealing materials.
*Can pack inner pyramid tea bag only, or with envelope for each tea bag.
2.Technical Parameters of TK-160-4S Pyramid Tea Bag With Outer Envelope Machine
Items | Descriptions |
Working Capacity | 40~45 bags per minute for 6 scales |
Sealing Method | Ultrasonic sealing for inner bag; Heat sealing for envelope |
Filling Range | 2~10 g (determined by tea materials) |
Weight Tolerance | About±0.2g / bag |
Feeding System | 6 Electronic Vibrator Scales |
Inner Film Width | 120mm, or 140mm, or 160mm |
Outer Film Width | Decided by inner film size |

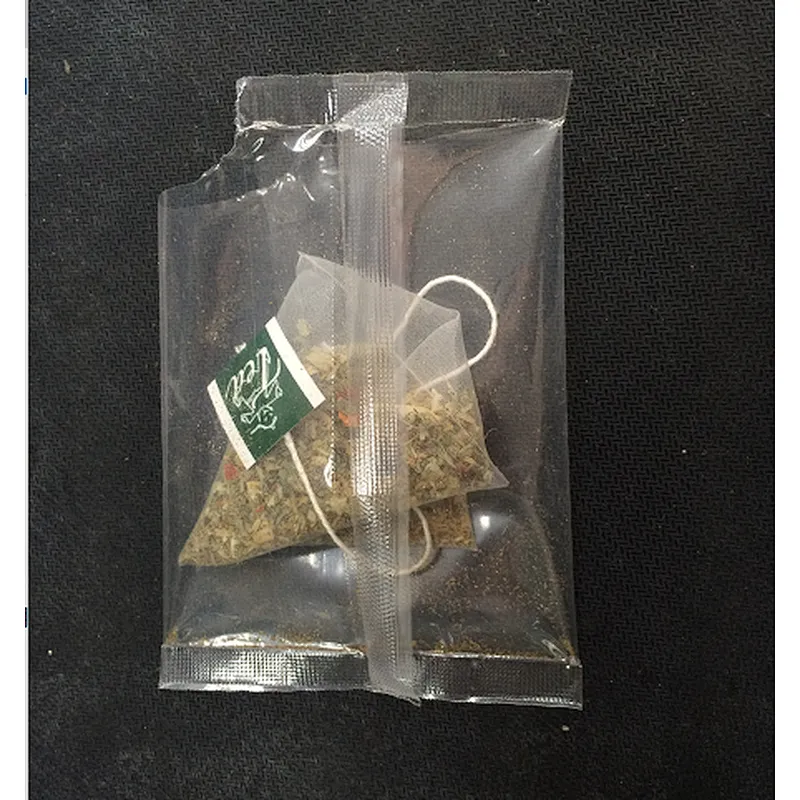

Outer Bag Type | Back sealing, or 3-side sealing |
Envelope Easy Tear Notch | Available |
Date Printer | Available |
Nitrogen Flush | Available (buyer should prepare N2 generator) |
Inner Film Material | PLA fiber, Nylon, non-woven fabrics or others which can be sealed by ultrasonic method |
Volume | about3kg per scale |
Power | 2.2 KW |
Voltage | 220V, single phase; 50/60HZ; |
Air Consumption | 0.6~0.8 Mpa (6~8 bar), 0.4m3/min. |
Floor Standing Size | L1300 * W1250 * H2400 mm (for inner machine) L 3700 * W 1250 * H 2400 mm (inner with envelope) |
G.W | 650 kg |
