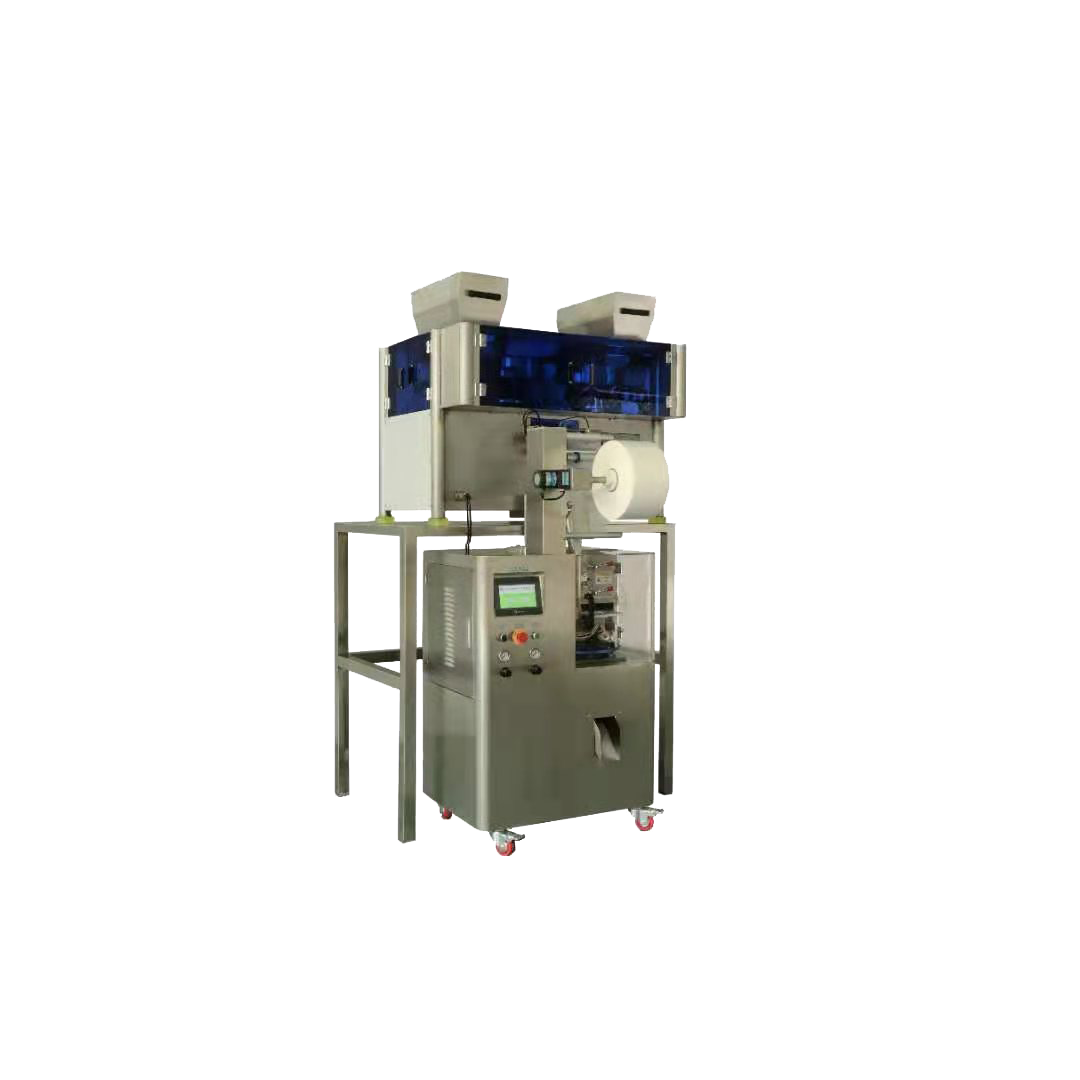

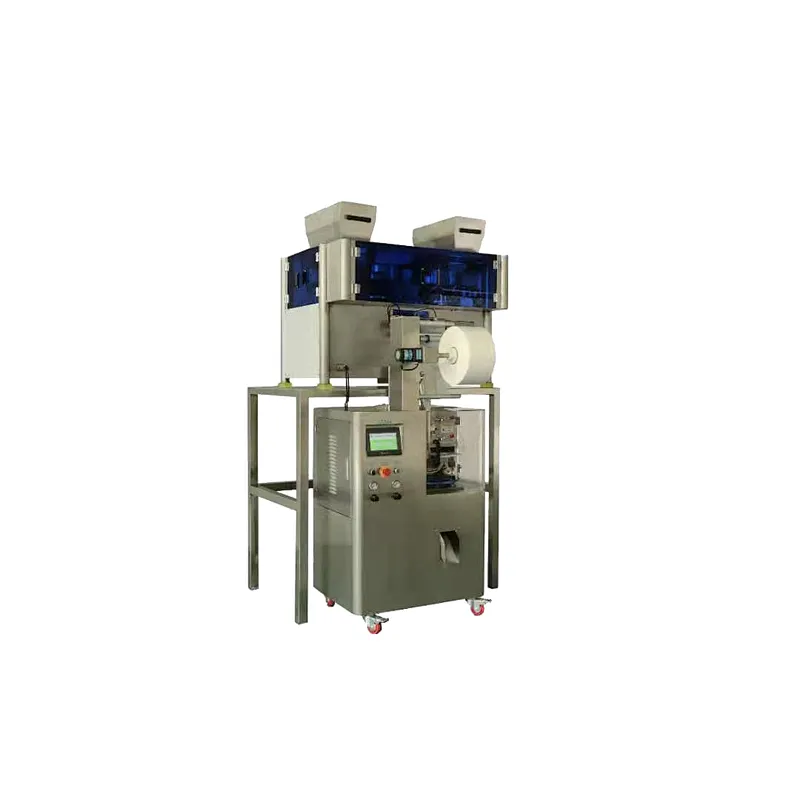

TK-160 Pyramid Tea Bag Packing Machine

Model NO.: TK-160
Delivery: FOB, CFR, CIF
Minimum order quantity: 1 set
Supply Ability: 100 set / Month
Stock Time: 30 Days

Quantity:

Product Description

1. Application of Pyramid Tea Bag Packing Machine

This machine is designed specially for packing pyramid tea bag, and rectangular tea bag as well.

Filling material can be various tea leaves, flower tea, herb tea, fruit tea, blend tea etc.

2.Features of Pyramid Tea Bag Packing Machine

*Advanced electronic scales automatic weighing feeding system & ultrasonic sealing and cutting technology.

*Electronic scales filling system with PLC and touchscreen for easy operation.

*Operating flexibility through optional adjustment of technical parameters.

*Working capacity can be 3,000 bags/hr (Determined by tea material).

3.TechnicalParameters of Pyramid Tea Bag Packing Machine

Items	Descriptions
Working Capacity	30~40 bags/min (determined by tea and films)
Sealing Method	Ultrasonic Sealing
Filling Range	2~10 g (determined by tea materials)
Feeding System	Electronic Scales
Film Width	120mm; or 140mm; or 160mm
Power	2.2 KW
Voltage	220V, single phase; 50HZ;
Air Consumption	0.6 Mpa, 0.4m³/min.
Reference Size	130016002230 mm
G.W	400 kg
