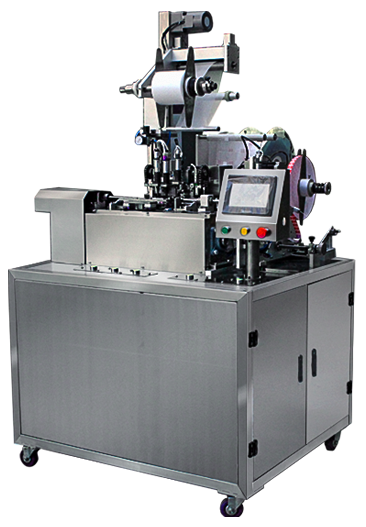

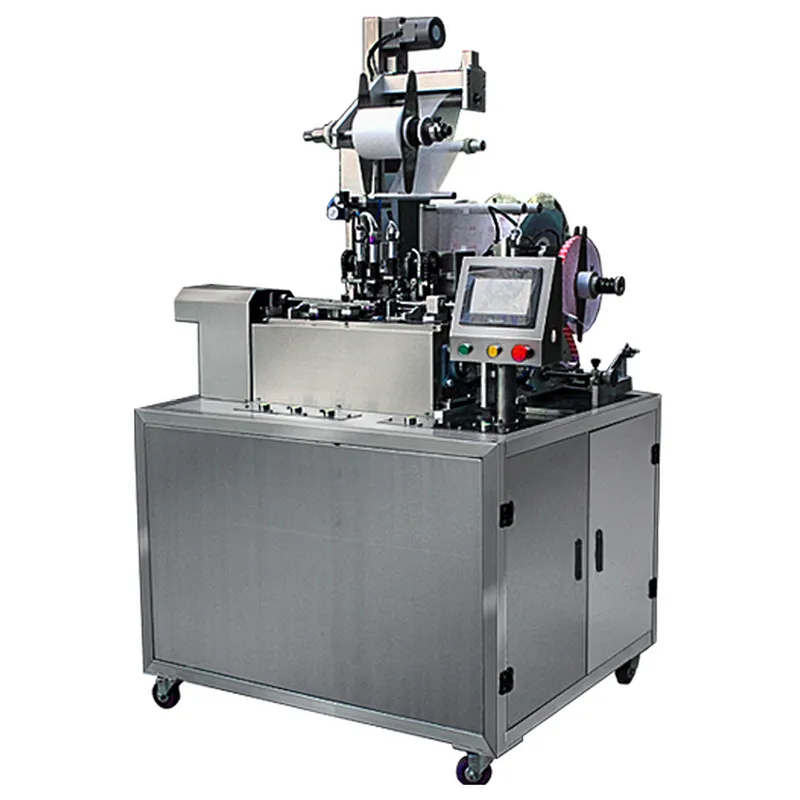

1.Applications of TK-FT86 tagging machine
TK-FT86,as the matching equipment with TK-160 series pyramid tea bag packing machine,specially designed for different kinds of packing materials tagging,such as Nylon,PLA,Polyester mesh and Non-woven, adopts high-frequency ultrasonic labeling and unique W type thread folding type, the max length can reach at 190mm.
- Technical Specifications of TK-FT86 tagging machine
Working speed | 70 bags/min |
Tagging method | High-frequency Ultrasonic |
Thread length | 130mm,150mm,170mm,190mm |
Tagging materials | Nylon,PLA,Polyester Mesh,PET,Non-woven |
Air consumption | ≥0.8Mpa 0.35m³/min |
Power | 220V Single phase 50/60Hz 1.5Kw |
Gross weight | 650kg |
Size | 1376*1000*2512mm |
3.Advantages of TK-FT86 tagging machine
*70 tags/min, working efficiency is 40% higher than any other models in China market.
*“W”type thread, high qualification rate with low damage during the sealing and packaging process.
*Imported Mitsubishi PLC and touch screen control,easy operation.
*Wide application,not only can be applied to the Nylon,but also for the Polyester Mesh,PLA and Non-woven.
*It can be applied to different width film,such as 120mm,140mm,160mm and 180mm.
*With optional thread length, meets the needs of different kinds of clients.
