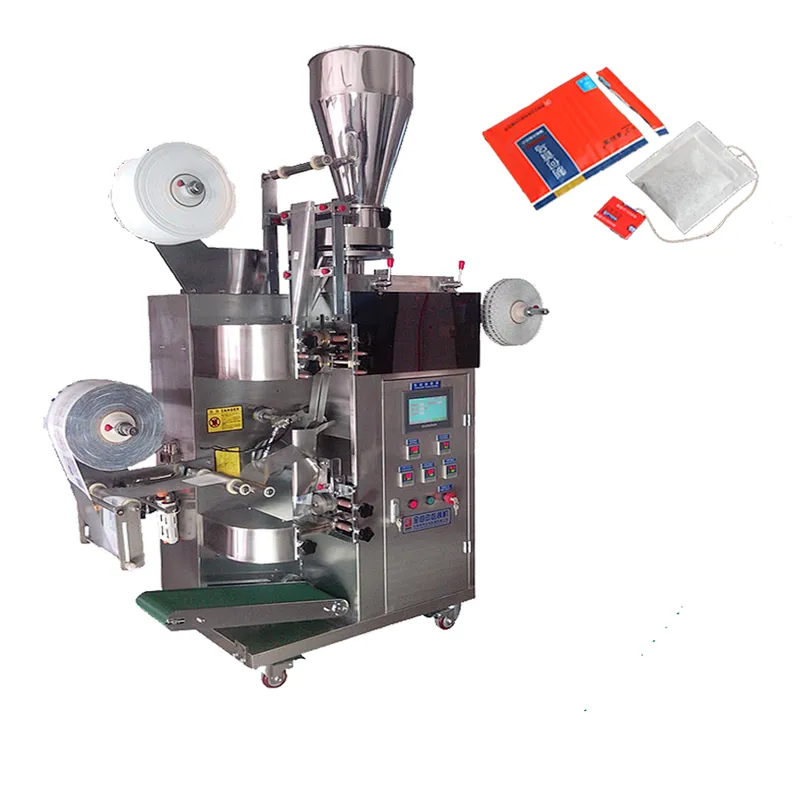

1.Application of TK-168 Filter Paper Tea Bag With Envelope Packing Machine
TK-168 is designed for packing filter paper bag with string and tag, and outer bag together.

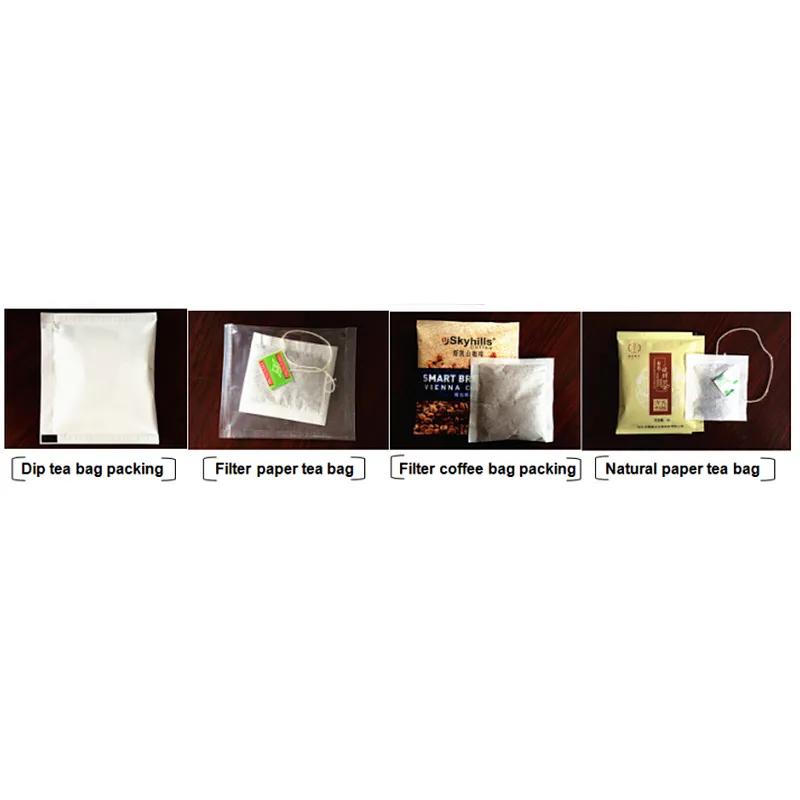

Filling material can be broken tea, loose tea, tea powder or granules, coffee or others in small particles etc.
2,Advantages of TK-168 Filter Paper Tea Bag With Envelope Packing Machine
*VOLUMETRICCUPfeeding and weighing system, easy operation and high working efficiency ±0.2 gram.
*JAPAN MITSUBISHI PLC and WEINVIEW touch screen, stable packaging performance.
*Wide application,besides for the tea, it can be applied to the coffee powder and small particles.
*Customized bag size based on customer’s requirements.
*PID temperature control, suitable for a variety of packaging film materials.
*Long life service, easy maintenance and fast delivery of spare parts for replacement.
3.Technical Specifications of TK-168 Filter Paper Tea Bag With Envelope Packing Machine
Working Capacity | 30~40 bags/min |
Filling Range | 1~10 g/bag |
Feeding System | Volumetric cup |
Bag Size | Inner | Length: 50~70mm Width: 55~80mm |
Outer | Length: 85~120mm Width: 70~95mm |
Inner Filter Film Width | 120mm, 125mm, 140mm, or customized |
Outer Film Width | Decided by inner size |
Packing Material | Filter paper for inner bag; Outer composite aluminium/paper film |
Sealing Type | Heat Sealing / 3-side sealing |
Size of Tag | 22.5*22.5mm or 22.5*20mm |
String Length | 170mm |
Air Consumption | About0.6MPa (6 bar), 0.35m³/min (Air compressor to be prepared by client) |
Power | 220V, Single phase, 50/60HZ; 1.6 Kw |
Gross Weight | 400 kg |
Dimensions | L 1200 * W 800 * H 1800 mm |
